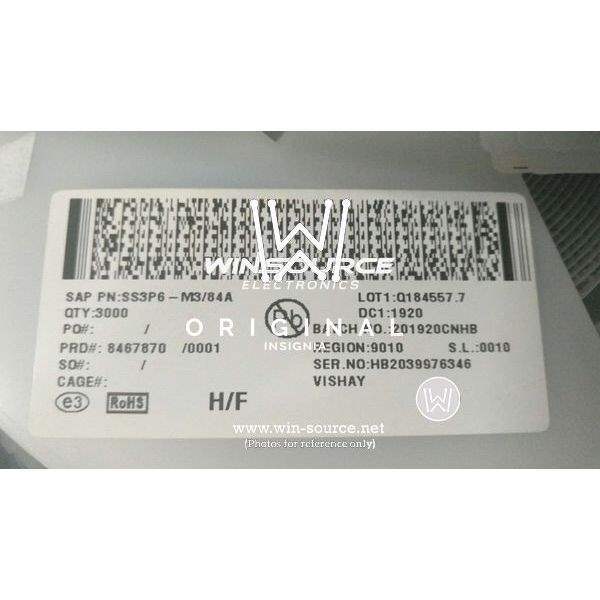

SS3P6-M3/84A Vishay SS3P6-M3/84A Real Image SS3P6-M3/84A label picture 2
Same model may have multiple batches, images only for reference.
SS3P6-M3/84A Vishay SS3P6-M3/84A Real Image SS3P6-M3/84A label picture 2
SS3P6-M3/84A Vishay SS3P6-M3/84A Real Image SS3P6-M3/84A label picture 2
Same model may have multiple batches, images only for reference.

SS3P6-M3/84A

Part No SS3P6-M3/84A
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description Diode Schottky 60V 3A 2-Pin SMP T/R / DIODE SCHOTTKY 60V 3A DO220AA
Datasheet
SS3P6-M3/84A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 60V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 780mV @ 3A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 100μA @ 60V
Capacitance @ Vr, F 80pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package DO-220AA (SMP)
Operating Temperature - Junction -55°C to 150°C
Win Source Part Number 030848-SS3P6-M3/84A
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name SS3P6
Introduction Date September 06, 2006
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian SS3P6-M3/84A CAD Model

Description

The Vishay 030848-SS3P6-M3/84A is an SMD (SMT) Schottky diode designed for discrete semiconductor applications.

  • Voltage-DC reverse (Vr) (Max): 60V
  • Average rectified current (Io): 3A
  • Voltage-forward (Vf) (Max) @ If: 780mV @ 3A
  • Current-reverse leakage @ Vr: 100μA @ 60V
  • Capacitance @ Vr, F: 80pF @ 4V, 1MHz
  • Operating Temperature Range: -55°C to 150°C
  • Package: DO-220AA (SMP) package
  • Popularity: popular with a high popularity rating
  • Supply and Demand Status: balanced supply and demand status.
