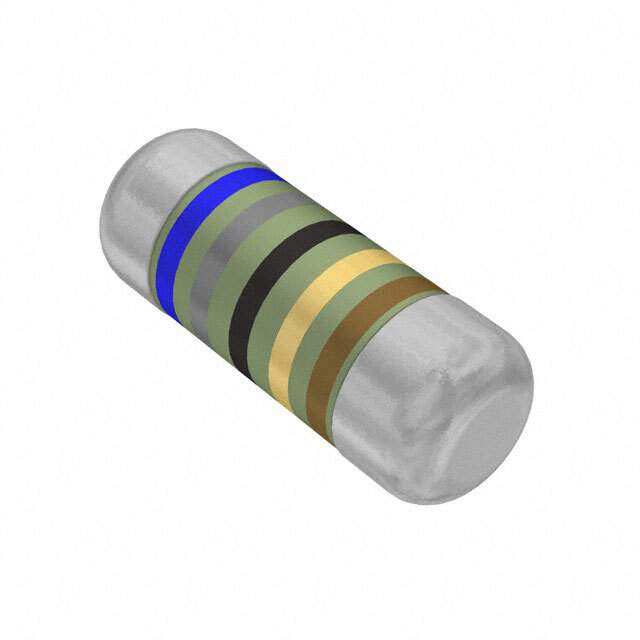

SMM02070C6809FBP00 Real Image
Same model may have multiple batches, images only for reference.

SMM02070C6809FBP00

Part No SMM02070C6809FBP00
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description Res Thin Film 0207(2309) 68 Ohm 1% 1W ±50ppm/°C Sulfur Resistant Melf Pad SMD Automotive T/R / RES SMD 68 OHM 1% 1W MELF
Datasheet
SMM02070C6809FBP00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Vishay
Packaging Reel - TR
Status Active
Resistance (Ohms) 68
Tolerance ±1%
Power (Watts) 1W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C to 155°C
Case / Package 0207
Number of Terminations 2
Win Source Part Number 211850-SMM02070C6809FBP00
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name SMM0207
Introduction Date July 21, 2012
ECCN EAR99
Country of Origin Germany
Halogen Free Compliant
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian SMM02070C6809FBP00 CAD Model

Description

The Vishay SMM02070C6809FBP00 is a thin film resistor that is designed to deliver high precision and stability.

  • Manufacturer: Vishay
  • Resistance: 68 Ohms
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Power Rating: 1W
  • Compliance: Automotive AEC-Q200 compliant
  • Feature: Pulse withstanding
  • Feature: Anti-sulfur
  • Terminations: Two terminations
  • Product Family: SMM0207
  • Package: 0207 package
  • Operating Temperature: -55°C to 155°C
  • Status: Active component
  • EOL date: 2030
  • Compliance: Halogen-free
  • Compliance: ECCN EAR99
