Same model may have multiple batches, images only for reference.

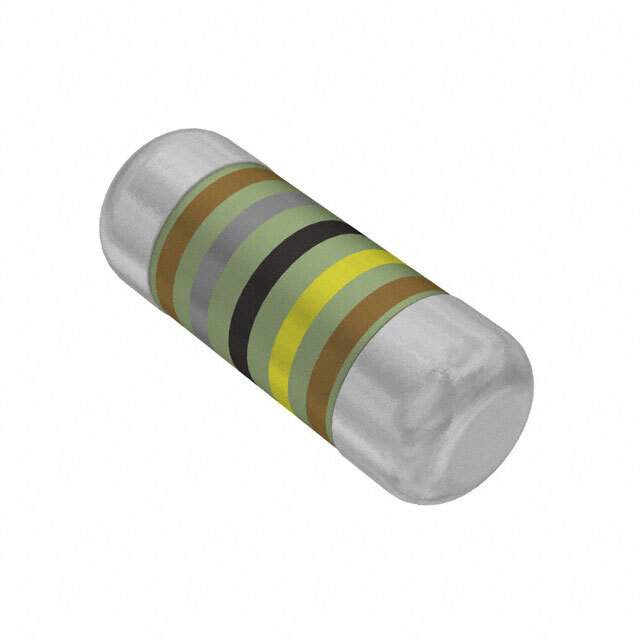

SMM02070C1809FBP00 Real Image
Same model may have multiple batches, images only for reference.

SMM02070C1809FBP00

Part No SMM02070C1809FBP00
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 18 OHM 1% 1W MELF
Datasheet
SMM02070C1809FBP00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Vishay Beyschlag
Series SMM0207
Packaging Reel - TR
Resistance (Ohms) 18
Tolerance ±1%
Power (Watts) 1W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±50ppm/°C
Operating Temperature Range -55°C ~ 155°C
Package MELF, 0207
Manufacturer Package 0207
Size 0.087" Dia x 0.228" L (2.20mm x 5.80mm)
Number of Terminations 2
Manufacturer Vishay
Manufacturer Homepage www.vishay.com
Win Source Part Number 749360-SMM02070C1809FBP00
Popularity Medium
Supply and Demand Status Balance
Family Name SMM0207
Introduction Date August 28, 2007
ECCN EAR99
Country of Origin Germany
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian SMM02070C1809FBP00 CAD Model

Description

The Vishay Beyschlag SMM0207 thin film resistor is a high-performance resistor with a 1W power rating and a resistance of 18 ohms.

  • Power Rating: 1W
  • Resistance: 18 ohms
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Operating Temperature: -55°C to 155°C
  • Package: MELF 0207
  • Terminations: 2
  • Applications: Automotive
  • Feature: Anti-Sulfur and Pulse-withstanding
  • Series: SMM0207
  • Alternative Parts: TRN65EF18R0TRF, NFR0207TF18R0DTRF, and SMA-A0207FTNT18R
