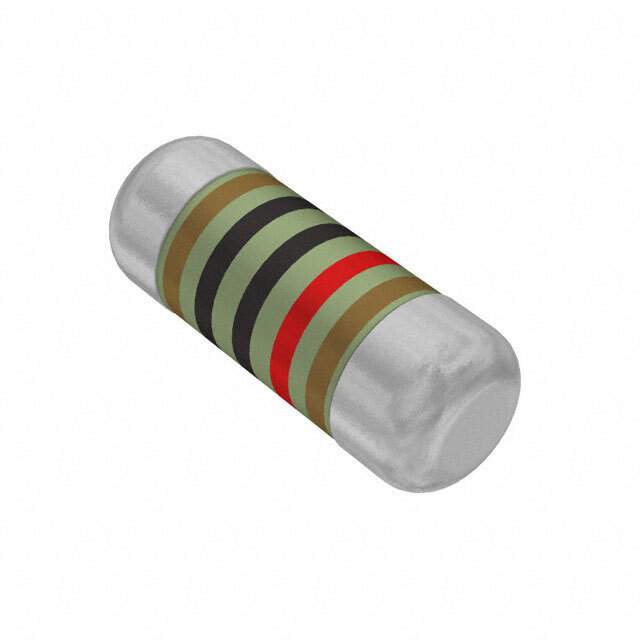

SMM02070C1002FBP00 Real Image
Same model may have multiple batches, images only for reference.

SMM02070C1002FBP00

Part No SMM02070C1002FBP00
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 10K OHM 1% 1W MELF / 10 kOhms ±1% 1W Chip Resistor MELF, 0207 Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding Thin Film
Datasheet
SMM02070C1002FBP00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Beyschlag/Draloric/BC Components
Series SMM0207
Package Tape & Reel
Resistance 10 kOhms
Tolerance ±1%
Power (Watts) 1W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case MELF, 0207
Supplier Device Package MELF
Ratings AEC-Q200
Dimension 0.087" Dia x 0.228" L (2.20mm x 5.80mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0040
Other Names SMM02070C1002FBP00-ND,749-1133-1,749-1133-2,749-1133-6
Standard Package 1,500
Win Source Part Number 961455-SMM02070C1002FBP00
Ultra Librarian 3D Model Ultra Librarian SMM02070C1002FBP00 CAD Model

Description

The Vishay SMM02070C1002FBP00 is a chip resistor for surface mounting with a resistance of 10 kOhms and a power rating of 1W.

  • Package/Case: MELF, 0207
  • Height: 0.087 inches
  • Length: 0.228 inches
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Feature: Anti-sulfur and automotive AEC-Q200 rated, and is pulse withstanding
  • Packaging: Tape and Reel
  • Standard Package: 1,500
  • Terminations: 2
  • Series: SMM0207
  • REACH: Unaffected
  • HTSUS: 8533.21.0040
