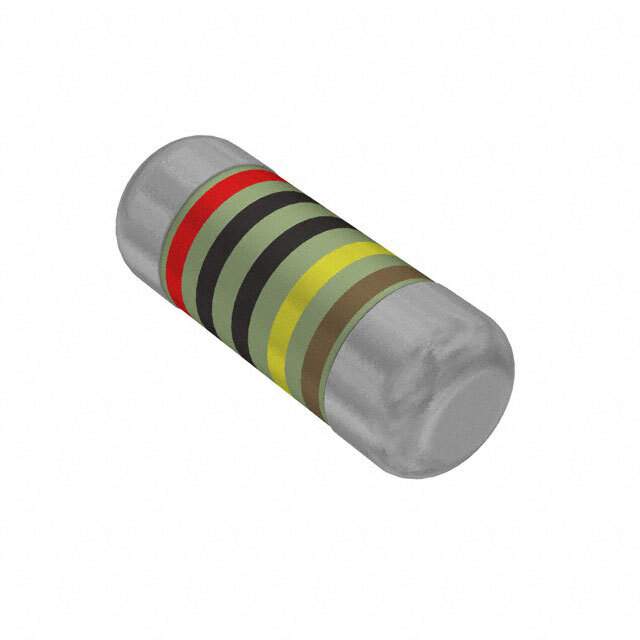

Same model may have multiple batches, images only for reference.

SMM02040C2004FB300

Name: SMM02040C2004FB300
Brand: Vishay
SKU: 1383482
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SMM02040C2004FB300
Manufacturer	Vishay
Catalog	Chip Resistor - Surface Mount
Description	RES 2M OHM 1% 1/4W MELF 0204 / 2 MOhms ±1% 0.25W, 1/4W Chip Resistor MELF, 0204 Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding Thin Film
Datasheet	SMM02040C2004FB300 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Chip Resistor - Surface Mount
Mfr	Vishay
Series	SMM0204
Package	Tape & Reel
Resistance	2 MOhms
Tolerance	±1%
Power (Watts)	0.25W, 1/4W
Composition	Thin Film
Features	Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient	±50ppm/°C
Temperature Range - Operating	-55°C ~ 125°C
Package / Case	MELF, 0204
Supplier Device Package	Mini MELF
Ratings	AEC-Q200
Size / Dimension	0.055" Dia x 0.142" L (1.40mm x 3.60mm)
Height - Seated (Max)	-
Number of Terminations	2
Failure Rate	-
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8533.21.0040
Standard Package	3,000 pcs
Win Source Part Number	1383482-SMM02040C2004FB300
Ultra Librarian 3D Model	Ultra Librarian SMM02040C2004FB300 CAD Model

Description

The Vishay SMM02040C2004FB300 chip resistor is a high-quality component suitable for various surface mount applications. With a resistance of 2 MOhms and a power rating of 0.25W, this resistor offers reliable performance.

Resistance: 2 MOhms
Power (Watts): 0.25W
Tolerance: ±1%
Temperature Coefficient: ±50ppm/°C
Technology: Thin Film
Package / Case: MELF
Size / Dimension: 0.055" Dia x 0.142" L (1.40mm x 3.60mm)
Packaging: Tape & Reel (TR)
Manufacturer: Vishay
