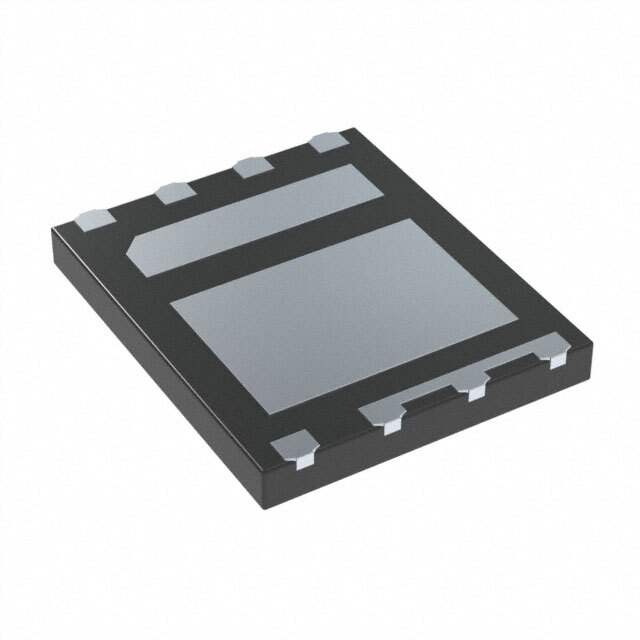

SIZ980DT-T1-GE3 Real Image
Same model may have multiple batches, images only for reference.

SIZ980DT-T1-GE3

Part No SIZ980DT-T1-GE3
Manufacturer Vishay
Catalog FETs - Arrays
Description MOSFET 2 N-CH 30V 8-POWERPAIR
Datasheet
SIZ980DT-T1-GE3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - FET, MOSFET Arrays
Mfr Vishay
Series TrenchFET®
Package Tape & Reel
Product Status Active
Technology MOSFET (Metal Oxide)
Configuration 2 N-Channel (Dual), Schottky
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) @ 25°C 20A (Tc), 60A (Tc)
Rds On (Max) @ Id, Vgs 6.7mOhm @ 15A, 10V, 1.6mOhm @ 19A, 10V
Vgs(th) (Max) @ Id 2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 8.1nC @ 4.5V, 35nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds 930pF @ 15V, 4600pF @ 15V
Power - Max 20W, 66W
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 8-PowerWDFN
Supplier Device Package 8-PowerPair® (6x5)
Base Product Number SIZ980
Standard Package 3,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 749245-SIZ980DT-T1-GE3
Ultra Librarian 3D Model Ultra Librarian SIZ980DT-T1-GE3 CAD Model

Description

The 749245-SIZ980DT-T1-GE3 is a MOSFET transistor array from Vishay.

  • Category: Discrete Semiconductor Products - Transistors - FETs, MOSFETs - FET, MOSFET Arrays
  • Series: TrenchFET
  • Channel: Two N-channel MOSFETs and a Schottky diode
  • Drain to Source Voltage (Vdss): 30V
  • Continuous Drain Current (Id): 20A @ 25°C
  • On-Resistance (Rds On): 6.7mOhm @ 15A and 10V
  • Gate Charge (Qg): 8.1nC @ 4.5V
  • Input Capacitance (Ciss): 930pF @ 15V
  • Package: 8-PowerWDFN
  • Mounting: surface mountable
  • Power Dissipation: 20W
  • Operating Temperature Range: -55°C to 150°C
