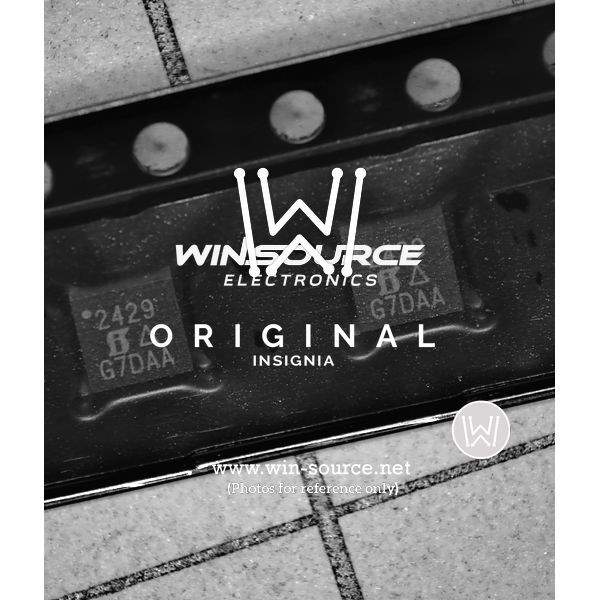

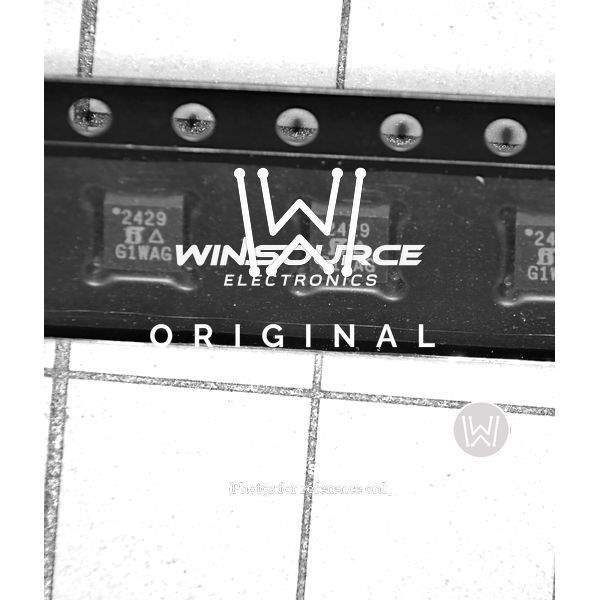

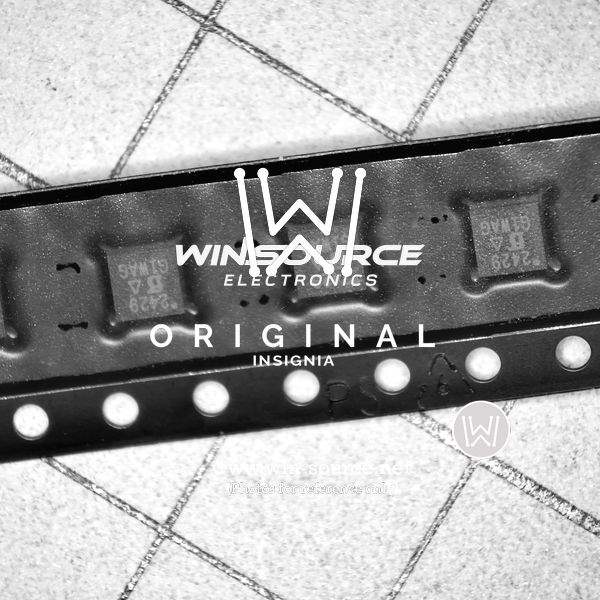

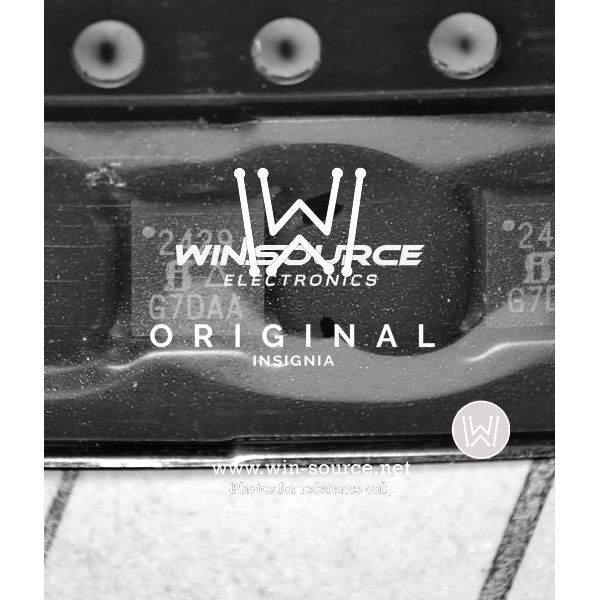

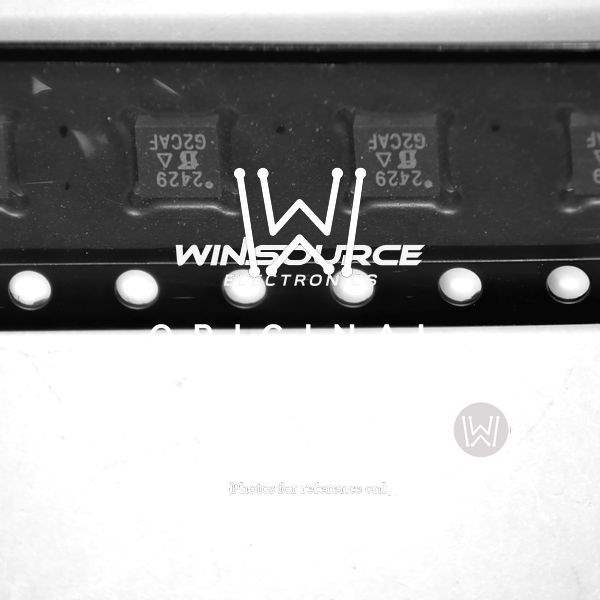

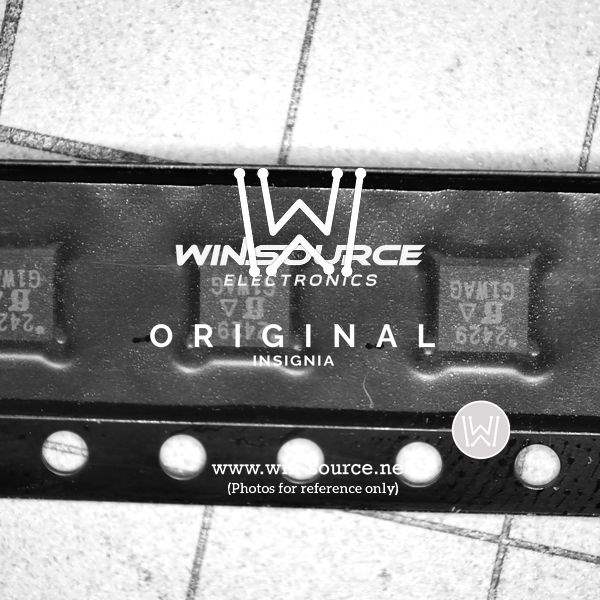

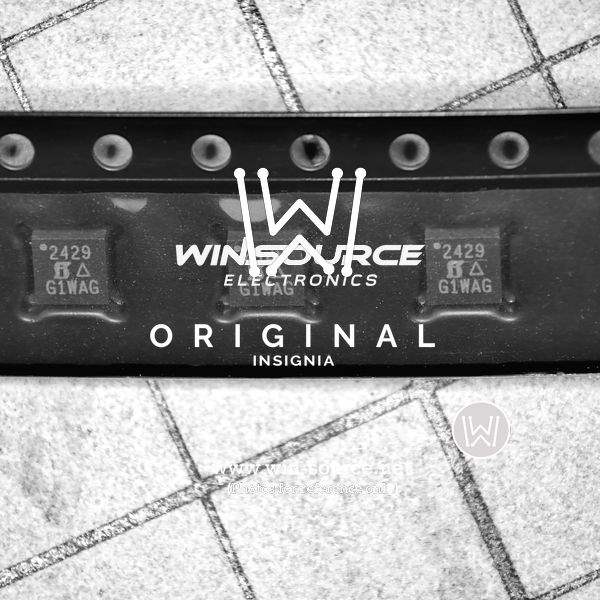

SIP32429DN-T1-GE4 real image16461 SIP32429DN-T1-GE4 real image16462 SIP32429DN-T1-GE4 real image16463 SIP32429DN-T1-GE4 Real Image1 SIP32429DN-T1-GE4 Real Image2 SIP32429DN-T1-GE4 Real Image3 SIP32429DN-T1-GE4 Real Image4
Same model may have multiple batches, images only for reference.
SIP32429DN-T1-GE4 real image16461 SIP32429DN-T1-GE4 real image16462 SIP32429DN-T1-GE4 real image16463 SIP32429DN-T1-GE4 Real Image1 SIP32429DN-T1-GE4 Real Image2 SIP32429DN-T1-GE4 Real Image3 SIP32429DN-T1-GE4 Real Image4
SIP32429DN-T1-GE4 real image16461 SIP32429DN-T1-GE4 real image16462 SIP32429DN-T1-GE4 real image16463 SIP32429DN-T1-GE4 Real Image1 SIP32429DN-T1-GE4 Real Image2 SIP32429DN-T1-GE4 Real Image3 SIP32429DN-T1-GE4 Real Image4
Same model may have multiple batches, images only for reference.

SIP32429DN-T1-GE4

Part No SIP32429DN-T1-GE4
Manufacturer Vishay
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC PWR SWITCH P-CHAN 1:1 10DFN / Power Switch/Driver 1:1 P-Channel 3.5A 10-DFN (3x3)
Datasheet
SIP32429DN-T1-GE4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Power Distribution Switches, Load Drivers
Mfr Vishay
Package Tape & Reel
Product Status Active
Switch Type General Purpose
Number of Outputs 1
Output Configuration High Side
Output Type P-Channel
Interface On/Off
Voltage - Load 6V ~ 28V
Voltage - Supply (Vcc/Vdd) Not Required
Current - Output (Max) 3.5A
Rds On (Typ) 56mOhm
Input Type Non-Inverting
Features Slew Rate Controlled, Status Flag
Fault Protection Current Limiting (Fixed), Over Temperature, UVLO
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Supplier Device Package 10-DFN (3x3)
Package / Case 10-VFDFN Exposed Pad
Base Product Number SIP32429
Standard Package 2,500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 846521-SIP32429DN-T1-GE4
Ultra Librarian 3D Model Ultra Librarian SIP32429DN-T1-GE4 CAD Model

Description

The SIP32429DN-T1-GE4 is a power distribution switch and load driver integrated circuit from Vishay.

  • Features: Slew Rate Control, Status Flag
  • Switch Type: P-Channel
  • Input Type: Non-Inverting
  • Interface: On/Off
  • Fault Protection: Current Limiting (Fixed), Over Temperature, Undervoltage Lockout (UVLO)
  • Output Configuration: High Side
  • Number of Outputs: 1
  • Maximum Output Current: 3.5A
  • Voltage Load: 6V to 28V
  • Package: 10-VFDFN Exposed Pad
  • Packaging: Tape and Reel
  • Standard Package: 2,500 pcs
  • Operating Temperature: -40°C to 85°C
