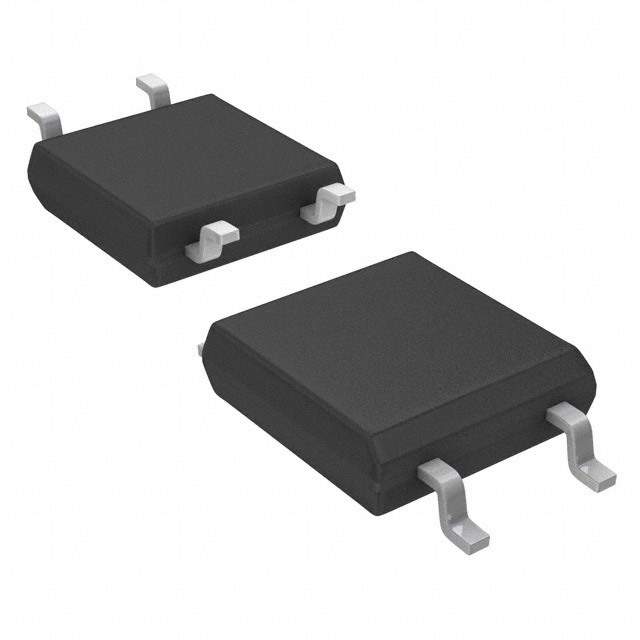

SFH690CT-X001 Real Image
Same model may have multiple batches, images only for reference.

SFH690CT-X001

Part No SFH690CT-X001
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 3.75KV TRANS 4SOP  /  Optoisolator Transistor Output 3750Vrms 1 Channel 4-SOP (2.54mm)
Datasheet
SFH690CT-X001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Transistor, Photovoltaic Output
Mfr Vishay Semiconductor Opto Division
Package Tape & Reel
Number of Channels 1
Voltage - Isolation 3750Vrms
Current Transfer Ratio (Min) 100% @ 5mA
Current Transfer Ratio (Max) 200% @ 5mA
Turn On / Turn Off Time (Typ) 5µs, 3µs
Rise / Fall Time (Typ) 3µs, 4µs
Input Type DC
Output Type Transistor
Voltage - Output (Max) 70V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.15V
Current - DC Forward (If) (Max) 50 mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -55°C ~ 100°C
Mounting SMD (SMT)
Package / Case 4-SMD, Gull Wing
Supplier Device Package 4-SOP (2.54mm)
Base Product Number SFH690
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Other Names SFH690CT-X001-ND,SFH690CT-X001DKR,SFH690CT-X001CT,SFH690CT-X001TR
Standard Package 2,000
Win Source Part Number 984655-SFH690CT-X001
Ultra Librarian 3D Model Ultra Librarian SFH690CT-X001 CAD Model

Description

The SFH690CT-X001 electronic component from Vishay is an optoisolator with a transistor, photovoltaic output.

  • Output: Transistor, photovoltaic
  • Voltage Isolation: 3750Vrms
  • Current Transfer Ratio (Min): 100% @ 5mA
  • Mounting: SMD (SMT)
  • Package/Case: 4-SMD, Gull Wing
  • Operating Temperature: -55°C ~ 100°C
  • Category: Isolators
  • Popularity: Low popularity
