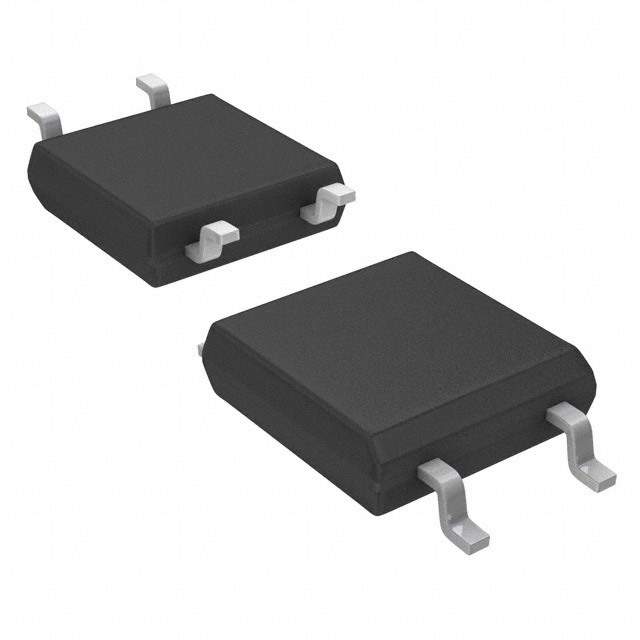

SFH690BT Real Image
Same model may have multiple batches, images only for reference.

SFH690BT

Part No SFH690BT
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description DC-IN 1-CH Transistor DC-OUT 4-Pin SOP T/R / OPTOISOLATOR 3.75KV TRANS 4-SOP
Datasheet
SFH690BT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay
Packaging Reel - TR
Status Active
Number of Channels 1
Isolation Voltage 3750Vrms
Minimum DC Current Transfer Ratio 100% @ 5mA
Maximum DC Current Transfer Ratio 300% @ 5mA
Switching Turn-On and Turn-Off Time 5μs, 3μs
Rise and Fall Time 3μs, 4μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 70V
Channel Output Current 50mA
Forward Voltage 1.15V
Continuous forward current- Max 50mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -55°C to 100°C
Mounting SMD (SMT)
Case / Package 4-SOP (2.54mm)
Win Source Part Number 028282-SFH690BT
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name SFH690
Introduction Date December 08, 2003
ECCN EAR99
Country of Origin China, Malaysia
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian SFH690BT CAD Model

Description

The Vishay SFH690BT is an optocoupler designed for use in high-speed switching applications.

  • Minimum DC Current Transfer Ratio: 100% @ 5mA
  • Maximum Output Voltage: 70V
  • Maximum Forward Voltage: 1.15V
  • Maximum Continuous Forward Current: 50mA
