Same model may have multiple batches, images only for reference.

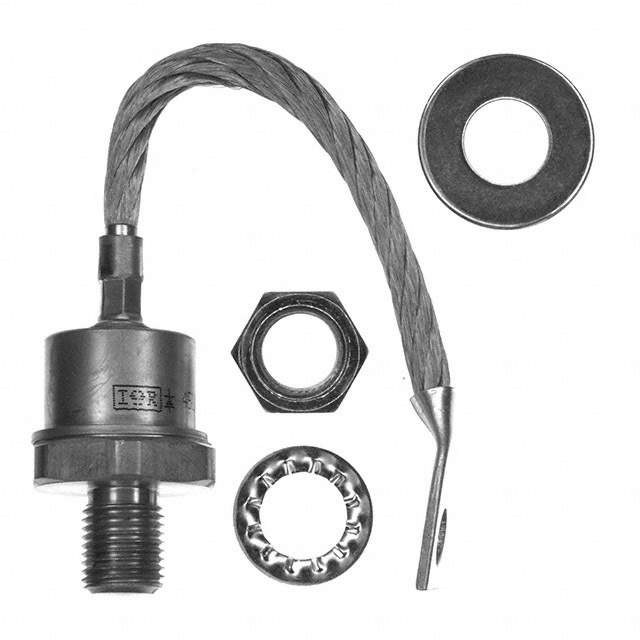

SD153R08S10PV Real Image
Same model may have multiple batches, images only for reference.

SD153R08S10PV

Part No SD153R08S10PV
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Datasheet
SD153R08S10PV Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Vishay General Semiconductor - Diodes Division
Package Bulk
Product Status Obsolete
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 800 V
Current - Average Rectified (Io) 150A
Voltage - Forward (Vf) (Max) @ If 1.55 V @ 470 A
Speed Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) 1 µs
Current - Reverse Leakage @ Vr 35 mA @ 800 V
Mounting Type Stud Mount
Package / Case DO-205AC, DO-30, Stud
Supplier Device Package DO-205AC (DO-30)
Operating Temperature - Junction -40°C ~ 125°C
Base Product Number SD153
Other Names *SD153R08S10PV
Standard Package 25
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1281932-SD153R08S10PV
Ultra Librarian 3D Model Ultra Librarian SD153R08S10PV CAD Model

Description

This electronic component is a standard recovery diode rectifier with a part number of 1281932-SD153R08S10PV.

  • Series: No series
  • Package: Bulk
  • Standard Package: 25
  • Voltage - DC Reverse (Vr) (Max): 800 V
  • Current - Average Rectified (Io): 150A
  • Voltage - Forward (Vf) (Max) @ If: 1.55 V @ 470 A
  • Reverse Recovery Time (trr): 1 µs
  • Current - Reverse Leakage @ Vr: 35 mA @ 800 V
  • Operating Temperature - Junction: -40°C ~ 125°C
  • Mounting: Stud mount
  • Package/Case: DO-205AC, DO-30, Stud
  • Supplier Device Package: DO-205AC (DO-30)
  • REACH Status: REACH Unaffected
  • HTSUS: 8541.10.0080
  • Manufacturer: Vishay General Semiconductor - Diodes Division
  • RoHS Status: RoHS non-compliant
