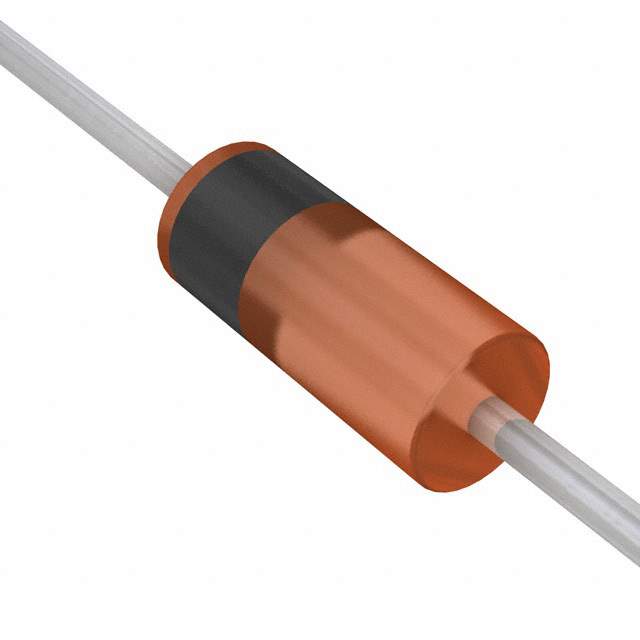

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Vishay General Semiconductor - Diodes Division
Series Automotive, AEC-Q101
Package Tape & Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 50 V
Current - Average Rectified (Io) 30mA (DC)
Voltage - Forward (Vf) (Max) @ If 950 mV @ 15 mA
Speed Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr 200 nA @ 50 V
Capacitance @ Vr, F 2pF @ 0V, 1MHz
Mounting Type Through Hole
Package / Case DO-204AH, DO-35, Axial
Supplier Device Package DO-35 (DO-204AH)
Operating Temperature - Junction -65°C ~ 150°C
Base Product Number SD101
Other Names 112-SD101B-TRCT,112-SD101B-TRDKR,SD101B-TR,112-SD101B-TR
Standard Package 50,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 1281443-SD101B-TR
Ultra Librarian 3D Model Ultra Librarian SD101B-TR CAD Model

Description

The Vishay General Semiconductor - Diodes Division SD101B-TR is a Schottky diode that can handle an average rectified current of 30mA (DC) with a reverse voltage of 50 V.

  • Average Rectified Current: 30mA (DC)
  • Reverse Voltage: 50 V
  • Forward Voltage: 950 mV @ 15 mA
  • Reverse Leakage Current: 200 nA @ 50 V
  • Capacitance: 2pF @ 0V, 1MHz
  • Package: DO-204AH, DO-35, Axial
  • Temperature Range: -65°C ~ 150°C
  • Application: Small Signal Applications
