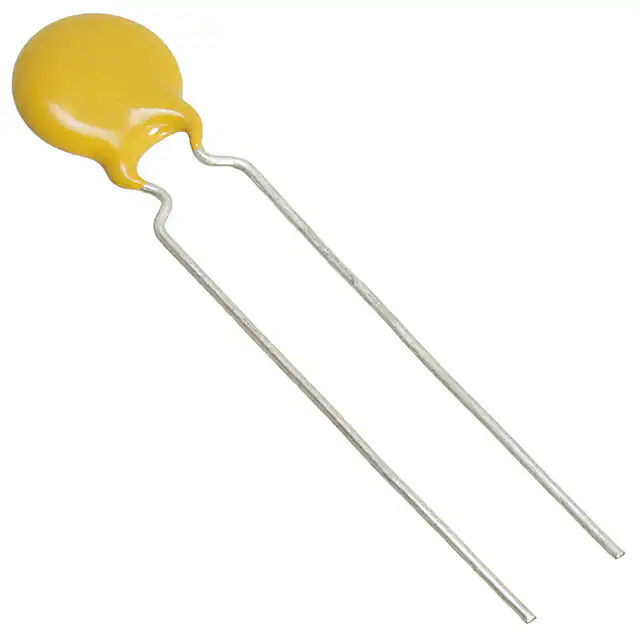

S472M39Z5UN63J5R Vishay
Same model may have multiple batches, images only for reference.

S472M39Z5UN63J5R

Part No S472M39Z5UN63J5R
Manufacturer Vishay
Catalog Ceramic Capacitors
Description CAP CER 4700PF 1KV Z5U RADIAL / 4700 pF ±20% 1000V (1kV) Ceramic Capacitor Z5U Radial, Disc
Datasheet
S472M39Z5UN63J5R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series S
Package Bulk
Product Status Active
Capacitance 4700 pF
Tolerance ±20%
Voltage - Rated 1000V (1kV)
Temperature Coefficient Z5U
Temperature Range - Operating -30°C ~ 125°C
Features -
Ratings -
Applications General Purpose
Failure Rate -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.551" (14.00mm)
Thickness (Max) -
Lead Spacing 0.197" (5.00mm)
Lead Style Formed Leads - Kinked
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.23.0060
Win Source Part Number 1359999-S472M39Z5UN63J5R
Ultra Librarian 3D Model Ultra Librarian S472M39Z5UN63J5R CAD Model

Description

The 1359999-S472M39Z5UN63J5R is a ceramic capacitor from Vishay Beyschlag/Draloric/BC Components.

  • Series: S
  • Capacitance: 4700 pF
  • Voltage Rating: 1000V (1kV)
  • Tolerance: ±20%
  • Mounting Type: Through Hole
  • Package / Case: Radial, Disc
  • Lead Spacing: 0.197" (5.00mm)
  • Size / Dimension: 0.394" Dia (10.00mm)
  • Height - Seated (Max): 0.551" (14.00mm)
  • Operating Temperature: -30°C to 125°C
  • REACH: Unaffected
  • ECCN: EAR99
