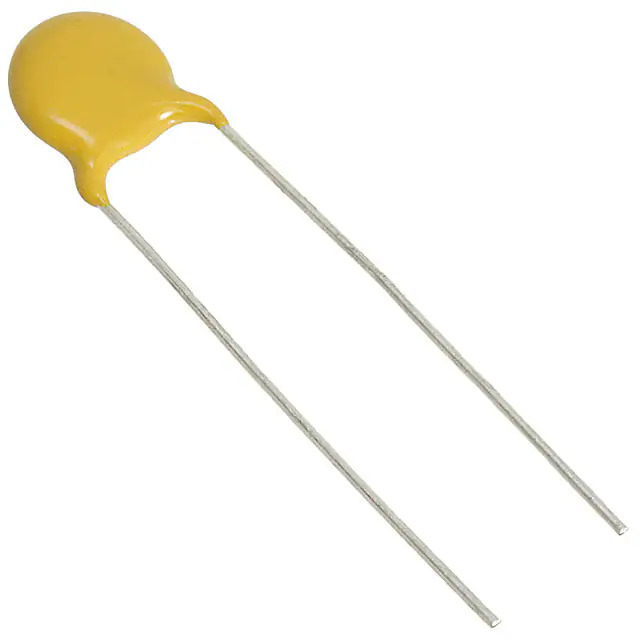

Same model may have multiple batches, images only for reference.
S103M47Z5UN63L0R Vishay
Same model may have multiple batches, images only for reference.

S103M47Z5UN63L0R

Part No S103M47Z5UN63L0R
Manufacturer Vishay
Catalog Ceramic Capacitors
Description CAP CER 10000PF 1KV Z5U RADIAL / 10000 pF ±20% 1000V (1kV) Ceramic Capacitor Z5U Radial, Disc
Datasheet
S103M47Z5UN63L0R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series S
Package Bulk
Product Status Active
Capacitance 10000 pF
Tolerance ±20%
Voltage - Rated 1000V (1kV)
Temperature Coefficient Z5U
Temperature Range - Operating -30°C ~ 125°C
Features -
Ratings -
Applications General Purpose
Failure Rate -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.472" Dia (12.00mm)
Height - Seated (Max) 0.661" (16.80mm)
Thickness (Max) -
Lead Spacing 0.295" (7.50mm)
Lead Style Straight
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.23.0060
Win Source Part Number 1360001-S103M47Z5UN63L0R
Ultra Librarian 3D Model Ultra Librarian S103M47Z5UN63L0R CAD Model

Description

The S103M47Z5UN63L0R is a ceramic capacitor from Vishay Beyschlag/Draloric/BC Components.

  • Capacitance: 10000pF
  • Voltage Rating: 1000V
  • Tolerance: ±20%
  • Package / Case: Radial, Disc
  • Lead Spacing: 7.50mm
  • Size / Dimension: 12.00mm
  • Operating Temperature: -30°C to 125°C
  • REACH: Unaffected
  • ECCN: EAR99
