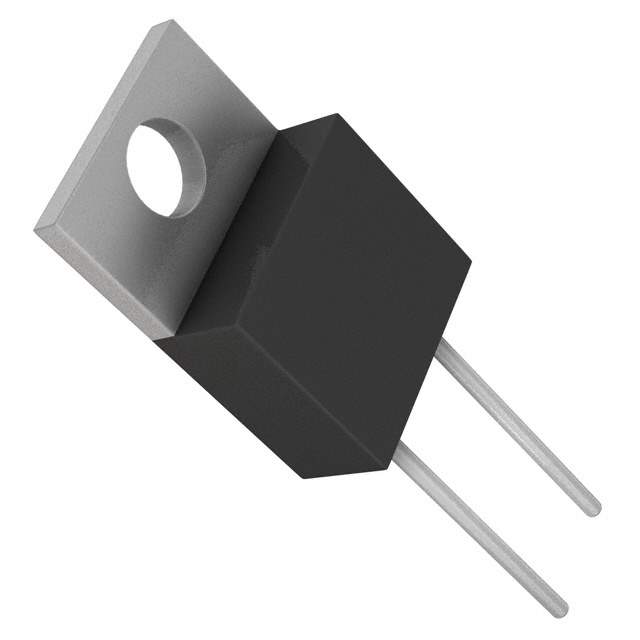

RTO020F10000JTE3 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr Vishay Sfernice
Series RTO 20
Package Tube
Resistance 1 kOhms
Tolerance ±5%
Power (Watts) 20W
Composition Thick Film
Features Non-Inductive
Temperature Coefficient ±150ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case TO-220-2
Supplier Device Package TO-220
Dimension 0.398" L x 0.177" W (10.10mm x 4.50mm)
Height - Seated (Max) 0.606" (15.40mm)
Number of Terminations 2
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.21.0090
Other Names RT20J-1.0K
Standard Package 50
Win Source Part Number 1016820-RTO020F10000JTE3
Ultra Librarian 3D Model Ultra Librarian RTO020F10000JTE3 CAD Model

Description

The Vishay Sfernice RTO020F10000JTE3 is a through-hole resistor that comes in a TO-220-2 package/case.

  • Package/Case: TO-220-2
  • Power: 20W
  • Composition: Thick Film
  • Resistance: 1 kOhms
  • Tolerance: ±5%
  • Temperature Coefficient: ±150ppm/°C
  • Package: Tube
  • Standard Package: 50
  • Series: RTO 20
  • Inductance: Non-Inductive
  • Terminations: 2
  • Height (Seated): 0.606" (15.40mm)
  • Dimension: 0.398" L x 0.177" W (10.10mm x 4.50mm)
  • Market Availability: Open Market
