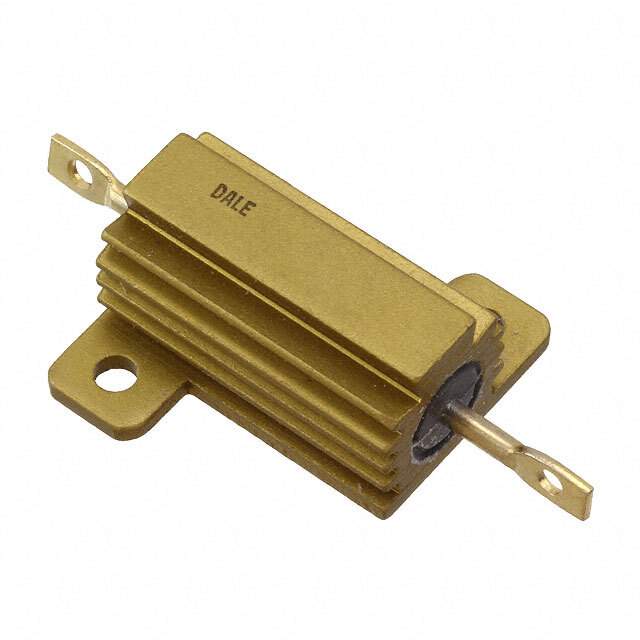

RH025R1000FC02 Real Image
Same model may have multiple batches, images only for reference.

RH025R1000FC02

Part No RH025R1000FC02
Manufacturer Vishay
Catalog Chassis Mount Resistors
Description RES CHAS MNT 0.1 OHM 1% 25W / 100 mOhms ±1% 25W Wirewound Chassis Mount Resistor
Datasheet
RH025R1000FC02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chassis Mount Resistors
Mfr Vishay Dale
Series RH
Package Bulk
Resistance 100 mOhms
Tolerance ±1%
Power (Watts) 25W
Composition Wirewound
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 250°C
Features Moisture Resistant
Coating, Housing Type Aluminum
Mounting Feature Flanges
Dimension 1.062" L x 1.080" W (26.97mm x 27.43mm)
Height - Seated (Max) 0.561" (14.25mm)
Lead Style Solder Lugs
Package / Case Axial, Box
RoHS Status RoHS non-compliant
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.29.0000
Other Names RHC-.10
Standard Package 5
Win Source Part Number 1224962-RH025R1000FC02
Ultra Librarian 3D Model Ultra Librarian RH025R1000FC02 CAD Model

Description

The Vishay Dale RH series chassis mount resistor is a high-quality resistor designed for use in various applications.

  • Power Rating: 25W
  • Resistance: 100 mOhms
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Material: wirewound
  • Housing Type: aluminum coating
  • Package/Case: axial, box and has flanges for mounting
  • Temperature Range: -55°C to 250°C
  • ECCN: EAR99
