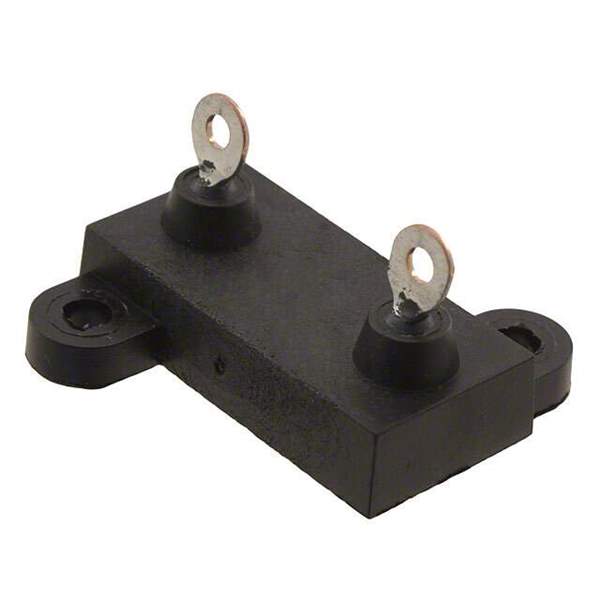

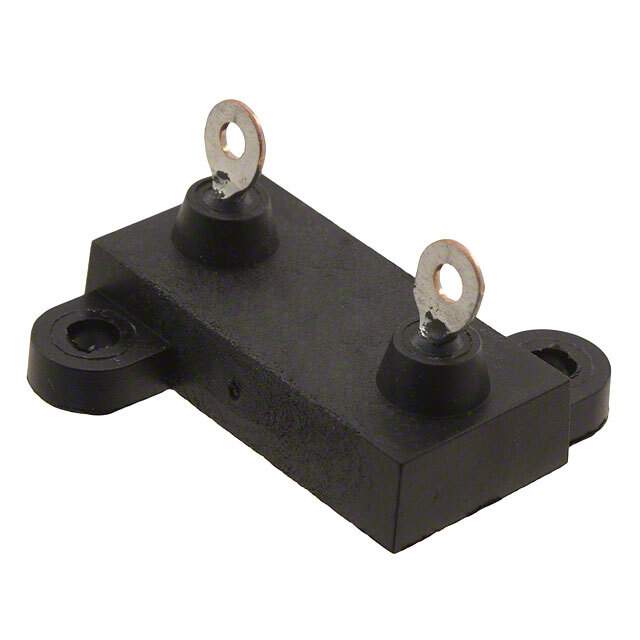

RCH25S100R0JS06 Real Image
Same model may have multiple batches, images only for reference.

RCH25S100R0JS06

Part No RCH25S100R0JS06
Manufacturer Vishay
Catalog Chassis Mount Resistors
Description RES CHAS MNT 100 OHM 5% 25W / 100 Ohms ±5% 25W Thick Film Chassis Mount Resistor
Datasheet
RCH25S100R0JS06 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chassis Mount Resistors
Mfr Vishay Sfernice
Series RCH
Package Bulk
Resistance 100 Ohms
Tolerance ±5%
Power (Watts) 25W
Composition Thick Film
Temperature Coefficient ±150ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Features Non-Inductive
Coating, Housing Type Aluminum Oxide
Mounting Feature Flanges
Size / Dimension 1.102" L x 1.083" W (28.00mm x 27.50mm)
Height - Seated (Max) 0.602" (15.30mm)
Lead Style Solder Lugs
Package / Case Radial, Rectangular Case
Standard Package 25
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.29.0000
Win Source Part Number 1339792-RCH25S100R0JS06
Ultra Librarian 3D Model Ultra Librarian RCH25S100R0JS06 CAD Model

Description

The Vishay Sfernice RCH25S100R0JS06 is a chassis mount resistor in the RCH series.

  • Features: Non-Inductive
  • Package: Bulk
  • Size / Dimension: 1.102" L x 1.083" W (28.00mm x 27.50mm)
  • Height-Seated (Max): 0.602" (15.30mm)
  • Tolerance: ±5%
  • Temperature Coefficient: ±150ppm/°C
  • Lead Style: Solder Lugs
  • Power: 25W
  • Mounting Feature: Flanges
  • Composition: Thick Film
  • Resistance: 100 Ohms
  • Coating/Housing Type: Aluminum Oxide
  • Package / Case: Radial, Rectangular Case
  • Operating Temperature: -55°C to 125°C
