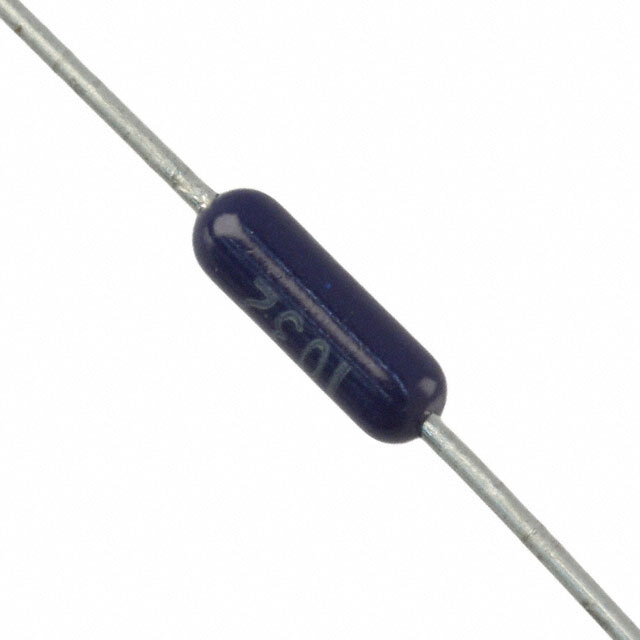

Same model may have multiple batches, images only for reference.
PTF56100R00AZBF Vishay – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PTF56100R00AZBF

Part No PTF56100R00AZBF
Manufacturer Vishay
Catalog Through Hole Resistors
Description CAP
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Resistance 100 Ohms
Tolerance ±0.05%
Power (Watts) 0.125W, 1/8W
Composition Metal Film
Features Moisture Resistant
Temperature Coefficient ±5ppm/°C
Temperature Range - Operating -55°C ~ 150°C
Case / Package Axial
Supplier Device Package Axial
Size / Dimension 0.091" Dia x 0.250" L (2.31mm x 6.35mm)
Number of Terminations 2
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1580110-PTF56100R00AZBF
Ultra Librarian 3D Model Ultra Librarian PTF56100R00AZBF CAD Model
