PTCCL05H181DBE Vishay
Same model may have multiple batches, images only for reference.

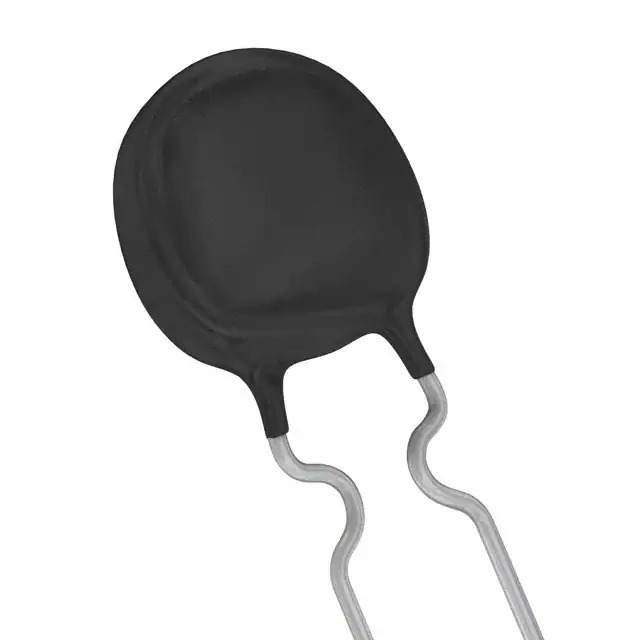

PTCCL05H181DBE

Part No PTCCL05H181DBE
Manufacturer Vishay
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 30V 180MA RADIAL / Ceramic PTC Resettable Fuse 30V 180 mA Ih Through Hole Radial, Disc
Datasheet
PTCCL05H181DBE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr Vishay Beyschlag/Draloric/BC Components
Series PTCCL - 30V
Package Bulk
Product Status Active
Type Ceramic
Voltage - Max 30V
Current - Hold (Ih) (Max) 180 mA
Current - Trip (It) 270 mA
Current - Max 1.7 A
Resistance - 25°C (Typ) 13 Ohms
Temperature Range - Operating -40°C ~ 85°C
Ratings -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.197" Dia x 0.157" T (5.00mm x 4.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Thickness (Max) -
Lead Spacing 0.197" (5.00mm)
Approval Agency UR
Base Product Number PTCCL
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1361804-PTCCL05H181DBE
Ultra Librarian 3D Model Ultra Librarian PTCCL05H181DBE CAD Model

Description

The PTCCL05H181DBE is a ceramic PTC resettable fuse designed for circuit protection. PTCCL05H181DBE is part of the Vishay Beyschlag/Draloric/BC Components PTCCL series.

  • Temperature Range: -40°C to 85°C
  • Maximum Voltage: 30V
  • Current Rating: 1.7 A
  • Trip Current: 270 mA
  • Resistance: 13 Ohms @ 25°C
  • Hold Current: 180 mA
  • Package: Radial, disc
  • Size: 0.197" Dia x 0.157" T (5.00mm x 4.00mm)
  • Lead Spacing: 0.197" (5.00mm)
  • Mounting Type: Through-hole
  • Seated Height: 0.394" (10.00mm)
  • REACH Compliant: Yes
  • ECCN: EAR99
