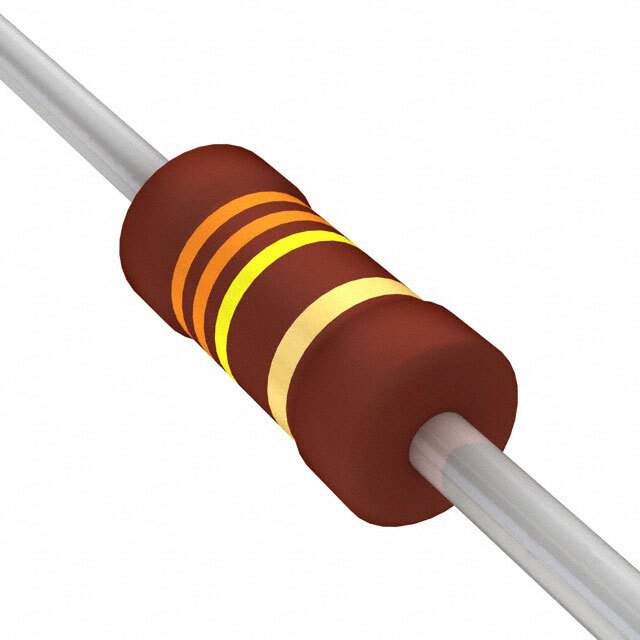

The PR02000203303JA100 is a metal film leaded resistor manufactured by Vishay. It's designed for general-purpose applications requiring stable and reliable resistance values.

Applications

• General Electronics: Used in various electronic circuits for current limiting, voltage division, and pull-up/pull-down configurations.
• Power Supplies: Employed in power supplies for current sensing and voltage regulation.
• Audio Equipment: Utilized in audio amplifiers and signal processing circuits for impedance matching and attenuation.
• Test and Measurement Equipment: Integrated into test and measurement instruments for accurate resistance values.
• Industrial Control Systems: Applied in industrial control systems for sensor signal conditioning and process control.

Features

• Metal Film Construction: Provides high stability, low noise, and low temperature coefficient of resistance (TCR).
• Precision Tolerance: Offers a tolerance of 5%, ensuring accurate resistance values.
• Flameproof Coating: Features a flameproof coating for enhanced safety.
• Leaded Design: Allows for easy through-hole mounting on PCBs.
• Wide Resistance Range: Available in a wide range of resistance values to suit various applications.

Benefits

• High Stability: Maintains stable resistance values over time and temperature.
• Reliable Operation: Provides reliable performance in various environmental conditions.
• Easy to Use: Easy to install and integrate into existing circuits.
• Cost-Effective: Offers a cost-effective solution for general-purpose resistance requirements.
• Enhanced Safety: Flameproof coating provides enhanced safety in case of overload or failure.

Additional Details

The PR02000203303JA100 has a resistance value of 330 kOhms and a power rating of 2W. The operating temperature range is typically from -55°C to +155°C. The resistor is lead-free and RoHS compliant. It is commonly used in series and parallel combinations to achieve desired resistance and power rating values.
