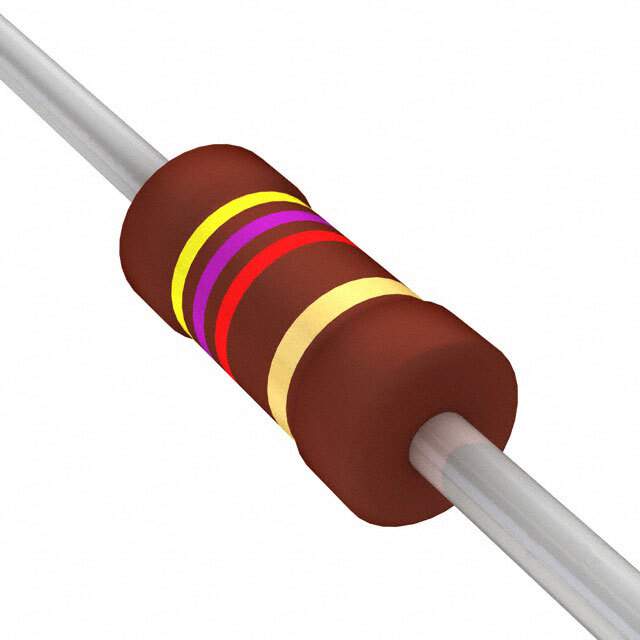

Same model may have multiple batches, images only for reference.

PR01000104701JR500

Name: PR01000104701JR500
Brand: Vishay
SKU: 1038764
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PR01000104701JR500
Manufacturer	Vishay
Catalog	Through Hole Resistors
Description	RES 4.7K OHM 1W 5% AXIAL / 4.7 kOhms ±5% 1W Through Hole Resistor Axial Automotive AEC-Q200, Flame Retardant Coating, Safety Metal Film
Datasheet	PR01000104701JR500 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Through Hole Resistors
Mfr	Vishay Beyschlag/Draloric/BC Components
Series	PR01
Package	Tape & Reel (TR),Cut Tape (CT)
Resistance	4.7 kOhms
Tolerance	±5%
Power (Watts)	1W
Composition	Metal Film
Features	Automotive AEC-Q200, Flame Retardant Coating, Safety
Temperature Coefficient	±250ppm/°C
Temperature Range - Operating	-55°C ~ 155°C
Package / Case	Axial
Supplier Device Package	Axial
Dimension	0.098" Dia x 0.256" L (2.50mm x 6.50mm)
Number of Terminations	2
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.21.0090
Other Names	230619723472,BC4.7KW-1CT,BC4.7KW-1TR-ND,2306 197 23472,PPC4.7KW-1TR,5073NW4K700J12AFX,BC4.7KW-1CT-ND,BC4.7KW-1CTINACTIVE,PPC4.7KW-1TR-NDR,BC4.7KW-1TRINACTIVE,5073NW4K700J12AFXBC,BC4.7KW-1TR,PPC4.7KW-1CT,PPC4.7KW-1CT-NDR,BC4.7KW-1TR-NDR,5073NW4K700JAFX
Standard Package	5,000
Win Source Part Number	1038764-PR01000104701JR500
Ultra Librarian 3D Model	Ultra Librarian PR01000104701JR500 CAD Model

Description

The Vishay PR01000104701JR500 is a through-hole resistor that belongs to the PR01 series.

Resistance: 4.7 kOhms
Power Rating: 1W
Tolerance: ±5%
Temperature Coefficient: ±250ppm/°C
Package: Tape and Reel or Cut Tape
Mounting: Axial
