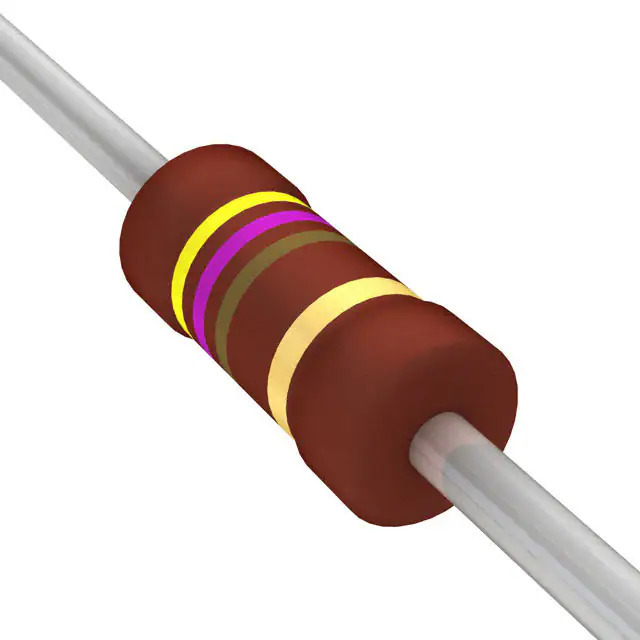

Same model may have multiple batches, images only for reference.
PR01000104700JR500 Vishay
Same model may have multiple batches, images only for reference.

PR01000104700JR500

Part No PR01000104700JR500
Manufacturer Vishay
Catalog Through Hole Resistors
Description RES 470 OHM 1W 5% AXIAL
Datasheet
PR01000104700JR500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Through Hole Resistors
Mfr Vishay Beyschlag/Draloric/BC Components
Series PR01
Package Tape & Reel (TR)
Product Status Active
Resistance 470 Ohms
Tolerance ±5%
Power (Watts) 1W
Composition Metal Film
Features Automotive AEC-Q200, Flame Retardant Coating, Fusible, Safety
Temperature Coefficient ±250ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Axial
Supplier Device Package Axial
Size / Dimension 0.098" Dia x 0.256" L (2.50mm x 6.50mm)
Height - Seated (Max) -
Number of Terminations 2
Failure Rate -
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Win Source Part Number 1374812-PR01000104700JR500
Ultra Librarian 3D Model Ultra Librarian PR01000104700JR500 CAD Model

Description

The PR01 series resistor is a high-quality through-hole resistor manufactured by Vishay Beyschlag/Draloric/BC Components.

  • Automotive: Yes
  • AEC Standard: AEC-Q200
  • Flame Retardant: Yes
  • Fusible: Yes
  • Resistance: 470 Ohms
  • Power (Watts): 1W
  • Composition: Metal Film
  • Tolerance: ±5%
  • Temperature Coefficient: ±250ppm/°C
  • Operating Temperature: -55°C ~ 155°C
  • Package / Case: Axial
  • Size / Dimension: 0.098" Dia x 0.256" L (2.50mm x 6.50mm)
  • Active Product: Yes
