Same model may have multiple batches, images only for reference.

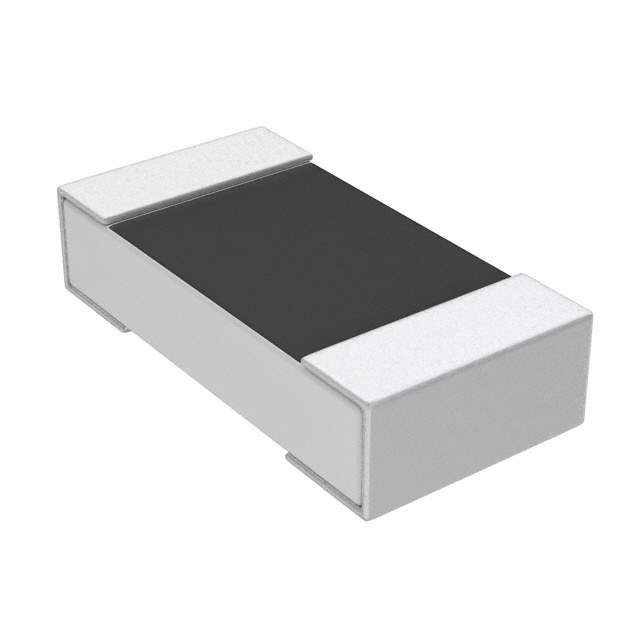

PLT0603Z2500AST5 Real Image
Same model may have multiple batches, images only for reference.

PLT0603Z2500AST5

Part No PLT0603Z2500AST5
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 250 OHM 0.05% 0.15W 0603 / 250 Ohms ±0.05% 0.15W Chip Resistor 0603 (1608 Metric) Anti-Corrosive, Flame Proof, Moisture Resistant, Safety Thin Film
Datasheet
PLT0603Z2500AST5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Dale Thin Film
Series PLT
Package Tape & Reel
Resistance 250 Ohms
Tolerance ±0.05%
Power (Watts) 0.15W
Composition Thin Film
Features Anti-Corrosive, Flame Proof, Moisture Resistant, Safety
Temperature Coefficient ±5ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Dimension 0.064" L x 0.032" W (1.63mm x 0.81mm)
Height - Seated (Max) 0.020" (0.51mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names PLT0603-250ADKR,PLT0603-250ATR,PLT0603-250ACT
Standard Package 500
Win Source Part Number 1209292-PLT0603Z2500AST5
Ultra Librarian 3D Model Ultra Librarian PLT0603Z2500AST5 CAD Model

Description

The Vishay Dale Thin Film PLT0603Z2500AST5 is a chip resistor that has a resistance of 250 Ohms and a power rating of 0.15W. The device is from Vishay Dale Thin Film.

  • Resistance: 250 Ohms
  • Power Rating: 0.15W
  • Tolerance: ±0.05%
  • Temperature Coefficient: ±5ppm/°C
  • Composition: Thin Film
  • Terminations: 2
  • Package: 0603 (1608 Metric)
  • Mounting: Tape and Reel
  • Operating Temperature Range: -55°C to 125°C
  • Package Quantity: 500 pieces
  • Popularity: Popular
  • MSL Level: Unlimited
