Same model may have multiple batches, images only for reference.

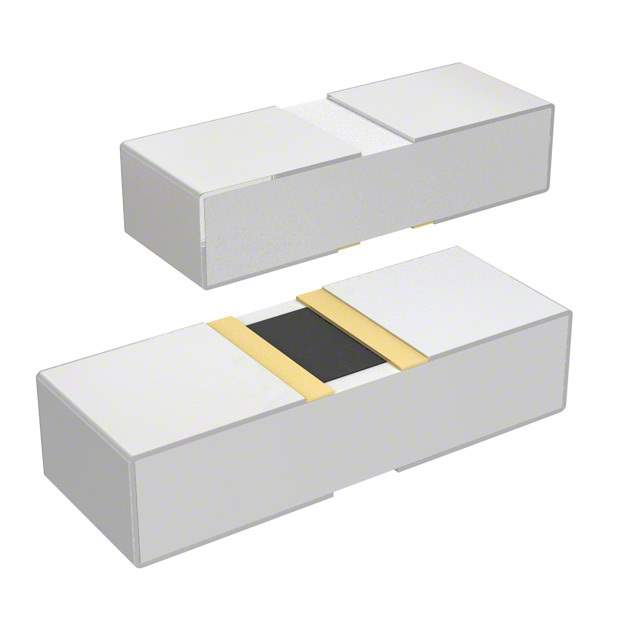

PHP00603E1002BST1 Real Image
Same model may have multiple batches, images only for reference.

PHP00603E1002BST1

Part No PHP00603E1002BST1
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 10K OHM 0.1% 3/8W 0603 / 10 kOhms ±0.1% 0.375W, 3/8W Chip Resistor 0603 (1608 Metric) Flame Proof, Moisture Resistant, Safety Thin Film
Datasheet
PHP00603E1002BST1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay Dale Thin Film
Series PHP
Package Tape & Reel
Resistance 10 kOhms
Tolerance ±0.1%
Power (Watts) 0.375W, 3/8W
Composition Thin Film
Features Flame Proof, Moisture Resistant, Safety
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Size / Dimension 0.064" L x 0.032" W (1.63mm x 0.81mm)
Height - Seated (Max) 0.020" (0.51mm)
Number of Terminations 2
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1338527-PHP00603E1002BST1
Ultra Librarian 3D Model Ultra Librarian PHP00603E1002BST1 CAD Model

Description

The Vishay PHP00603E1002BST1 is a chip resistor that belongs to the PHP series.

  • Resistance: 10 kOhms
  • Power: 0.375W
  • Win Source Part Number: 1338527-PHP00603E1002BST1
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Standard Package: 1,000
  • Package Size: 0603 (1608 Metric)
  • Description: This component is suitable for use in various electronic devices.
