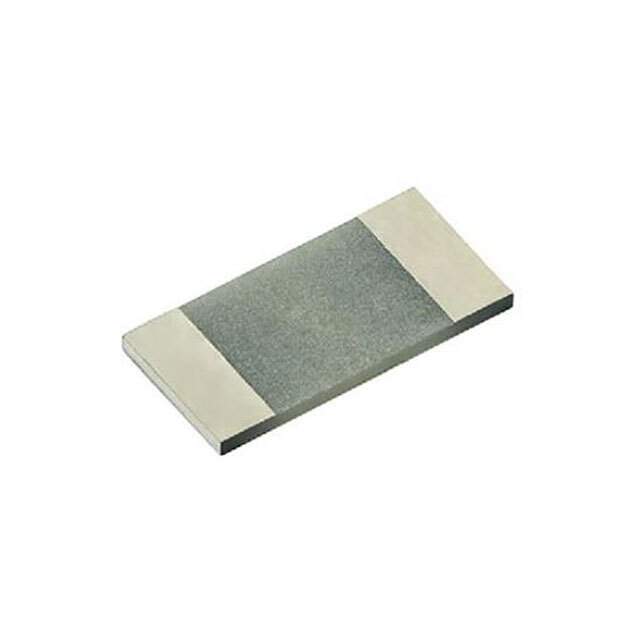

PCNM1206K4R70FST5 Real Image
Same model may have multiple batches, images only for reference.

PCNM1206K4R70FST5

Part No PCNM1206K4R70FST5
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 4.7 OHM 1% 2W 1206 / 4.7 Ohms ±1% 2W Chip Resistor 1206 (3216 Metric) Flame Proof, Moisture Resistant, Non-Magnetic, Safety Thin Film
Datasheet
PCNM1206K4R70FST5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay Dale Thin Film
Series PCNM
Package Tape & Reel
Resistance 4.7 Ohms
Tolerance ±1%
Power (Watts) 2W
Composition Thin Film
Features Flame Proof, Moisture Resistant, Non-Magnetic, Safety
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.018" (0.46mm)
Number of Terminations 2
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1351267-PCNM1206K4R70FST5
Ultra Librarian 3D Model Ultra Librarian PCNM1206K4R70FST5 CAD Model

Description

The Vishay Dale Thin Film PCNM1206K4R70FST5 is a chip resistor from Vishay Dale Thin Film.

  • Series: PCNM
  • Resistance: 4.7 Ohms
  • Power Rating: 2W
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Temperature Range: -55°C to 155°C
  • Package Type: Surface Mount
  • Size: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Features: flameproof, moisture-resistant, non-magnetic, and safe to use
  • Standard Package: 500
