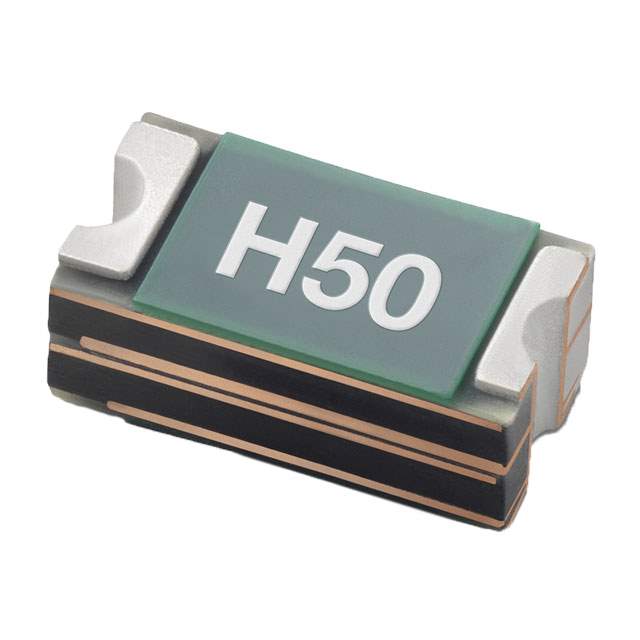

NANOASMDCH050F/24-2 Real Image1 NANOASMDCH050F/24-2 Real Image2
Same model may have multiple batches, images only for reference.
NANOASMDCH050F/24-2 Real Image1 NANOASMDCH050F/24-2 Real Image2
NANOASMDCH050F/24-2 Real Image1 NANOASMDCH050F/24-2 Real Image2
Same model may have multiple batches, images only for reference.

NANOASMDCH050F/24-2

Part No NANOASMDCH050F/24-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 24V 500MA 1206 / Polymeric PTC Resettable Fuse 24V 500 mA Ih Surface Mount 1206 (3216 Metric), Concave
Datasheet
NANOASMDCH050F/24-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Littelfuse Inc.
Series PolySwitch®, ASMD
Package Tape & Reel
Type Polymeric
Voltage - Max 24V
Current - Hold (Ih) (Max) 500 mA
Current - Trip (It) 2.5 A
Current - Max 20 A
Time to Trip 100 ms
Resistance - Initial (Ri) (Min) 200 mOhms
Resistance - Post Trip (R1) (Max) 1.6 Ohms
Temperature Range - Operating -40°C ~ 125°C
Ratings AEC-Q200
Mounting Type Surface Mount
Package / Case 1206 (3216 Metric), Concave
Size / Dimension 0.126" L x 0.062" W (3.20mm x 1.58mm)
Height - Seated (Max) -
Thickness (Max) 0.045" (1.14mm)
Lead Spacing -
Approval Agency UL
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
ECCN EAR99
HTSUS 8533.40.8070
California Prop 65 Warning Information
Standard Package 3,000 pcs
Win Source Part Number 1383005-NANOASMDCH050F/24-2
Ultra Librarian 3D Model Ultra Librarian NANOASMDCH050F/24-2 CAD Model

Description

The NANOASMDCH050F/24-2 is a PTC resettable fuse from the PolySwitch® ASMD series.

  • Fuse Type: Polymeric
  • Mounting Type: Surface Mount
  • Size: 0.126" L x 0.062" W (3.20mm x 1.58mm)
  • Thickness: 0.045" (1.14mm)
  • Maximum Voltage: 24V
  • Maximum Current: 20A
  • Hold Current: 500mA
  • Trip Current: 2.5A
  • Time to Trip: 100ms
  • Package: Tape & Reel
  • Package Type: 1206 (3216 Metric), Concave
  • Manufacturer: Littelfuse Inc.
  • Approval: UL
  • Moisture Sensitivity Level: 2A (4 weeks)
