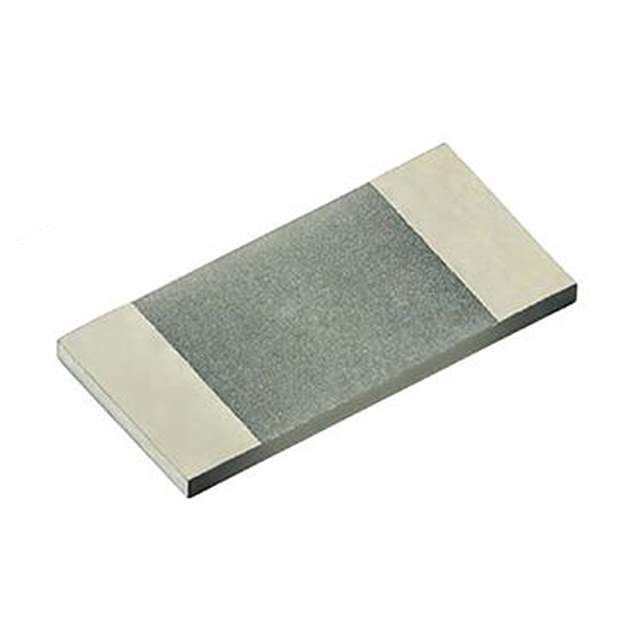

PCAN1206E49R9BST5 Real Image
Same model may have multiple batches, images only for reference.

PCAN1206E49R9BST5

Part No PCAN1206E49R9BST5
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 49.9 OHM 0.1% 2W 1206 / 49.9 Ohms ±0.1% 2W Chip Resistor 1206 (3216 Metric) Flame Proof, Moisture Resistant, Safety Thin Film
Datasheet
PCAN1206E49R9BST5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay Dale Thin Film
Series PCAN
Package Tape & Reel
Resistance 49.9 Ohms
Tolerance ±0.1%
Power (Watts) 2W
Composition Thin Film
Features Flame Proof, Moisture Resistant, Safety
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.018" (0.46mm)
Number of Terminations 2
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1349479-PCAN1206E49R9BST5
Ultra Librarian 3D Model Ultra Librarian PCAN1206E49R9BST5 CAD Model

Description

This chip resistor is a part of the PCAN series and is flame proof, moisture resistant, and safety compliant.

  • Manufacturer: Vishay Dale Thin Film
  • Series: PCAN
  • Package: Tape & Reel
  • Standard Package: 500
  • Size/Dimension: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Height Seated (Max): 0.018" (0.46mm)
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Power (Watts): 2W
  • Composition: Thin Film
  • Resistance: 49.9 Ohms
  • Package/Case: 1206 (3216 Metric)
  • Supplier Device Package: 1206
  • Temperature Range: -55°C ~ 155°C
  • HTSUS: 8533.21.0030
