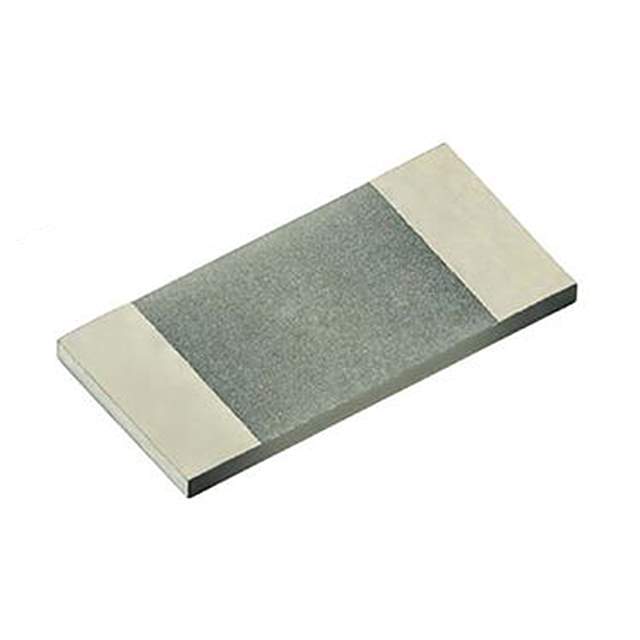

PCAN0603K2R00FST5

Part No PCAN0603K2R00FST5
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 2 OHM 1% 1/2W 0603 / 2 Ohms ±1% 0.5W, 1/2W Chip Resistor 0603 (1608 Metric) Flame Proof, Moisture Resistant, Safety Thin Film
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay Dale Thin Film
Series PCAN
Package Tape & Reel
Resistance 2 Ohms
Tolerance ±1%
Power (Watts) 0.5W, 1/2W
Composition Thin Film
Features Flame Proof, Moisture Resistant, Safety
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Size / Dimension 0.064" L x 0.032" W (1.63mm x 0.81mm)
Height - Seated (Max) 0.018" (0.46mm)
Number of Terminations 2
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1337475-PCAN0603K2R00FST5
Ultra Librarian 3D Model Ultra Librarian PCAN0603K2R00FST5 CAD Model

Description

The Vishay Dale Thin Film PCAN0603K2R00FST5 is a Chip Resistor Surface Mount designed for use in Resistors.

  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Power (Watts): 0.5W
  • Resistance: 2 Ohms
  • Features: Flame Proof, Moisture Resistant
  • Composition: Thin Film
  • Size / Dimension: 0.064" L x 0.032" W (1.63mm x 0.81mm)
  • Standard Package: 500
  • Mounting Type: Surface Mount
  • Packaging: Tape & Reel (TR)
  • Temperature Range: -55°C ~ 155°C
