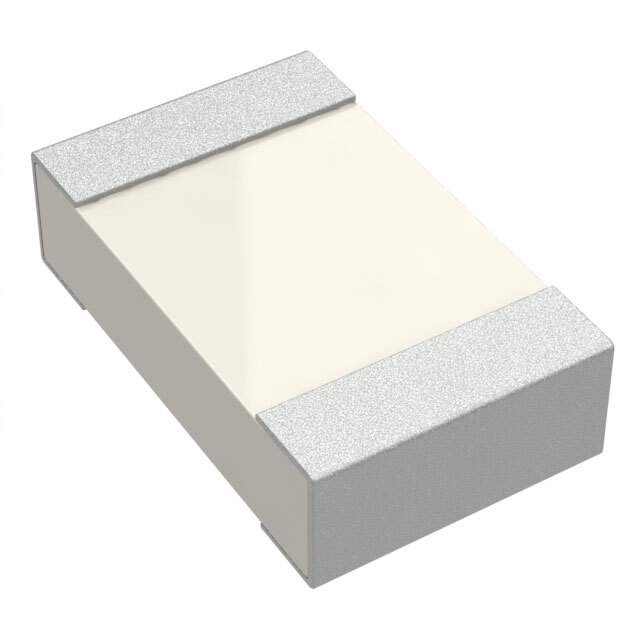

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package 2010
Composition Thin Film
Contact Plating Silver, Tin
Maximum Operating Temperature 155 °C
Min Operating Temperature -55 °C
Packaging Tape & Reel
Power Rating 1 W
Radiation Hardening No
Resistance 200 kΩ
RoHS Non-Compliant
Temperature Coefficient 25 ppm/°C
Tolerance 1 %
Win Source Part Number 1001482-P2010E2003FNT
Categories Chip Resistor - Surface Mount
Manufacturer Vishay
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian P2010E2003FNT CAD Model

Description

The 1001482-P2010E2003FNT from Vishay is a surface mount chip resistor with a resistance of 200 kΩ and a power rating of 1 W.

  • Composition: Thin Film
  • Tolerance: 1%
  • Case/Package: 2010
  • Packaging: Tape and Reel
  • Contact Plating: Silver and Tin
  • Maximum Operating Temperature: 155 degrees Celsius
  • Minimum Operating Temperature: -55 degrees Celsius
  • Application: Surface Mount Chip Resistor
