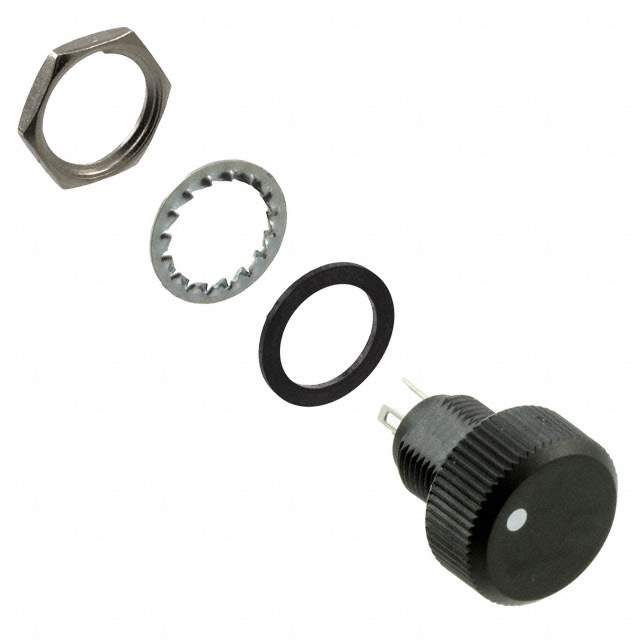

Same model may have multiple batches, images only for reference.

P16SNP102MAB15

Name: P16SNP102MAB15
Brand: Vishay
SKU: 1005502
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	P16SNP102MAB15
Manufacturer	Vishay
Catalog	Potentiometers, Variable Resistors
Description	POT 1K OHM 1W CERMET LINEAR / 1k Ohm 1 Gang Linear Panel Mount Potentiometer None 1.0 Kierros Cermet 1W Solder Lug
Datasheet	P16SNP102MAB15 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Potentiometers, Variable Resistors>Rotary Potentiometers, Rheostats
Mfr	Vishay Sfernice
Series	P16S
Package	Bulk
Resistance (Ohms)	1k
Tolerance	±20%
Power (Watts)	1W
Built in Switch	None
Number of Turns	1
Features	Sealed
Taper	Linear
Number of Gangs	1
Adjustment Type	User Defined
Temperature Coefficient	±150ppm/°C
Rotation	300°
Resistive Material	Cermet
Termination Style	Solder Lug
Actuator Type	Knob
Actuator Length	0.346" (8.80mm)
Actuator Diameter	0.630" (16.00mm)
Bushing Thread	M10 x 0.75
Mounting Type	Panel Mount
Size - Body	Round - 0.630" Dia (16.00mm)
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8533.40.8050
Other Names	P16SNP-1.0K
Standard Package	20
Win Source Part Number	1005502-P16SNP102MAB15
Ultra Librarian 3D Model	Ultra Librarian P16SNP102MAB15 CAD Model

Alternative Products

Description

The P16SNP102MAB15 is a high-quality rotary potentiometer that is ideal for use in a range of applications.

Resistance: 1k Ohms
Tolerance: ±20%
Power Rating: 1W
Temperature Coefficient: ±150ppm/°C
Type: Cermet Potentiometer
Sealed: Yes
Taper: Linear
Rotation: 300°
Mounting: Panel Mounting
Bushing Thread: M10 x 0.75
Supplied In: Tube of 20
Series: P16S
Manufacturer: Vishay Sfernice
Actuator Diameter: 0.630" (16.00mm)
