Same model may have multiple batches, images only for reference.

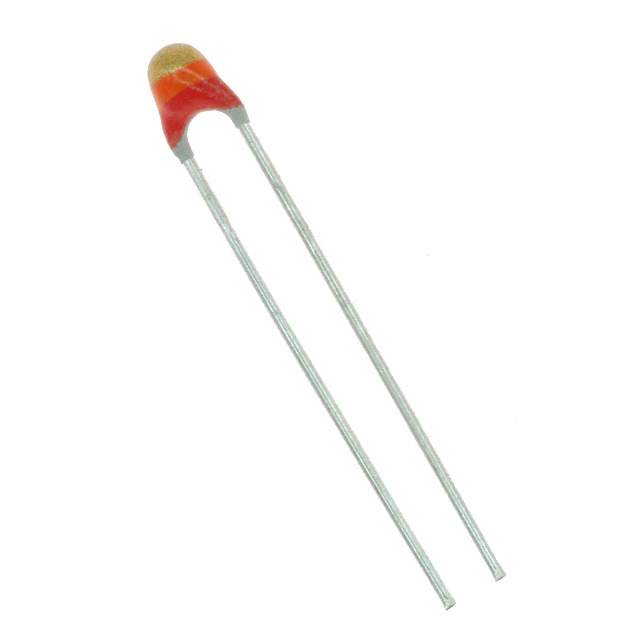

NTCLE100E3223JB0 Real Image
Same model may have multiple batches, images only for reference.

NTCLE100E3223JB0

Part No NTCLE100E3223JB0
Manufacturer Vishay
Catalog Temperature Sensors - NTC Thermistors
Description THERMISTOR NTC 22KOHM 3740K BEAD / NTC Thermistor 22k Bead
Datasheet
NTCLE100E3223JB0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Temperature Sensors - NTC Thermistors
Mfr Vishay Beyschlag/Draloric/BC Components
Package Bulk
Resistance in Ohms @ 25°C 22k
Resistance Tolerance ±5%
B Value Tolerance ±2%
B25/85 3740K
Temperature Range - Operating -40°C ~ 125°C
Power - Max 500 mW
Length - Lead Wire 0.59" (15.00mm)
Mounting Type Through Hole
Package / Case Bead
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Other Names BC2305,238164063223,2381 640 63223
Standard Package 500
Win Source Part Number 978039-NTCLE100E3223JB0
Ultra Librarian 3D Model Ultra Librarian NTCLE100E3223JB0 CAD Model

Description

The NTCLE100E3223JB0 is a temperature sensor used in electronic devices. It is a thermistor that changes resistance with temperature.

  • Type: Temperature Sensor, Thermistor
  • Resistance: 22k Ohms @ 25°C
  • Resistance Tolerance: ±5%
  • B Value Tolerance: ±2%
  • Temperature Range: -40°C to 125°C
  • Power Rating: 500mW
  • Package: Bead
  • Mounting: Through Hole
  • Manufacturer: Vishay Beyschlag/Draloric/BC Components
