Same model may have multiple batches, images only for reference.

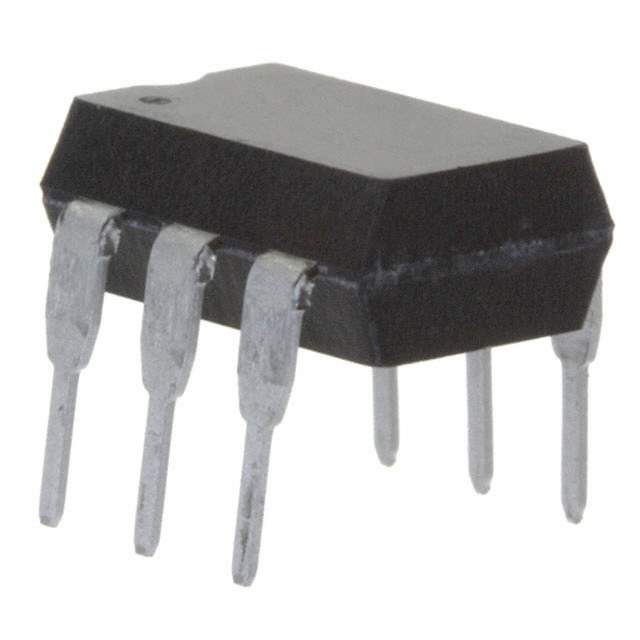

MOC8101 Real Image
Same model may have multiple batches, images only for reference.

MOC8101

Part No MOC8101
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 5.3KV TRANS 6-DIP
Datasheet
MOC8101 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Number of Channels 1
Isolation Voltage 5300Vrms
Minimum DC Current Transfer Ratio 50% @ 10mA
Maximum DC Current Transfer Ratio 80% @ 10mA
Switching Turn-On and Turn-Off Time 3μs, 2.3μs
Rise and Fall Time 2μs, 2μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 30V
Channel Output Current 50mA
Forward Voltage 1.25V
Continuous forward current- Max 60mA
Vce Saturation (Max) 400mV
Temperature Range - Operating -55°C to 100°C
Mounting Through Hole
Case / Package 6-DIP
Win Source Part Number 044938-MOC8101
Ultra Librarian 3D Model Ultra Librarian MOC8101 CAD Model

Description

The MOC8101 is an optocoupler with a transistor output type, manufactured by Vishay.

  • Isolation Voltage: 5300Vrms
  • Forward Voltage: 1.25V
  • Package: 6-DIP
  • Mounting Type: Through-Hole
  • DC Current Transfer Ratio (Min): 50% @ 10mA
  • DC Current Transfer Ratio (Max): 80% @ 10mA
  • Turn-On Time: 3μs
  • Turn-Off Time: 2.3μs
  • Rise Time: 2μs
  • Maximum Output Voltage: 30V
  • Channel Output Current: 50mA
  • Operating Temperature: -55°C to 100°C
