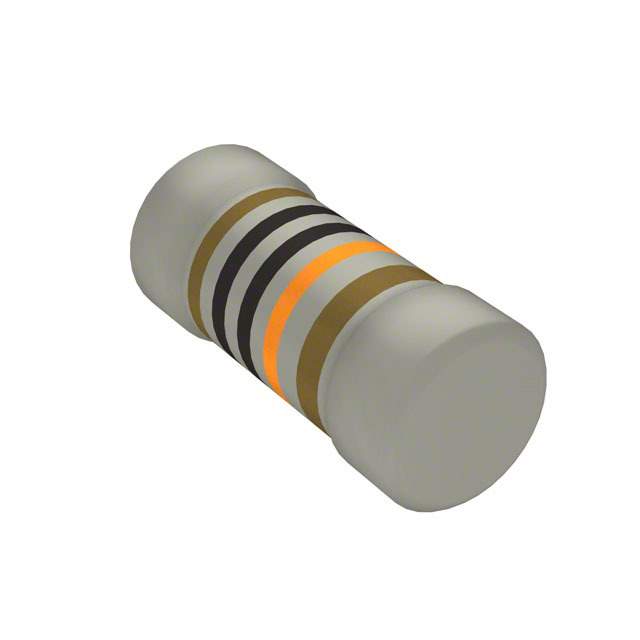

MMU01020C8201FB300 Real Image1 MMU01020C8201FB300 Real Image2
Same model may have multiple batches, images only for reference.
MMU01020C8201FB300 Real Image1 MMU01020C8201FB300 Real Image2
MMU01020C8201FB300 Real Image1 MMU01020C8201FB300 Real Image2
Same model may have multiple batches, images only for reference.

MMU01020C8201FB300

Part No MMU01020C8201FB300
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 8.2K OHM 1% 0.3W MELF 0102 / 8.2 kOhms ±1% 0.3W Chip Resistor MELF, 0102 Anti-Sulfur, Automotive AEC-Q200 Thin Film
Datasheet
MMU01020C8201FB300 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay
Series MMU - Professional
Package Tape & Reel
Resistance 8.2 kOhms
Tolerance ±1%
Power (Watts) 0.3W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case MELF, 0102
Supplier Device Package 0102
Ratings AEC-Q200
Size / Dimension 0.043" Dia x 0.087" L (1.10mm x 2.20mm)
Height - Seated (Max) -
Number of Terminations 2
Failure Rate -
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0040
Standard Package 3,000 pcs
Win Source Part Number 1382926-MMU01020C8201FB300
Ultra Librarian 3D Model Ultra Librarian MMU01020C8201FB300 CAD Model

Description

The MMU01020C8201FB300 is a chip resistor designed for surface mount applications, manufactured by Vishay.

  • Feature: Anti-sulfur, Automotive AEC-Q200
  • Size / Dimension: 0.043" Dia x 0.087" L
  • Power (Watts): 0.3W
  • Resistance: 8.2 kOhms
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Package / Case: MELF, 0102
  • Standard Package: 3,000 pcs
