Same model may have multiple batches, images only for reference.

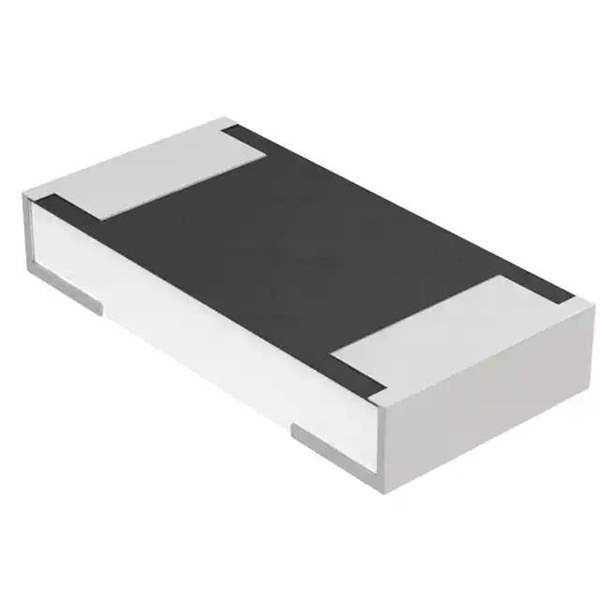

MFU1206FF02000P500 Real Image
Same model may have multiple batches, images only for reference.

MFU1206FF02000P500

Part No MFU1206FF02000P500
Manufacturer Vishay
Catalog Fuses
Description FUSE BOARD MOUNT 2A 63VDC 1206 / 2 A AC 63 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 1206 (3216 Metric)
Datasheet
MFU1206FF02000P500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Vishay
Series MFU
Package Tape & Reel
Product Status Active
Mounting Type Surface Mount
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 2 A
Voltage Rating - DC 63 V
Response Time Fast Blow
Package / Case 1206 (3216 Metric)
Breaking Capacity @ Rated Voltage 50A
Melting I2t 0.0102
Approval Agency IEC, UL
Temperature Range - Operating -55°C ~ 125°C
Size / Dimension 0.126" L x 0.063" W x 0.022" H (3.20mm x 1.60mm x 0.55mm)
DC Cold Resistance 0.069 Ohms
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 884558-MFU1206FF02000P500
Ultra Librarian 3D Model Ultra Librarian MFU1206FF02000P500 CAD Model

Description

The MFU1206FF02000P500 is a board mount fuse from Vishay's MFU series.

  • Manufacturer: Vishay
  • Product Name: MFU1206FF02000P500
  • Type: Board Mount Fuse
  • Series: MFU series
  • Application: Circuit Protection
  • Blow Characteristic: Fast-Blow
  • Voltage Rating: 63V
  • Breaking Capacity: 50A
  • Melting I2t: 0.0102
  • Size Dimensions: 0.126" L x 0.063" W x 0.022" H (3.20mm x 1.60mm x 0.55mm)
  • DC Cold Resistance: 0.069 Ohms
  • Mounting Type: Surface Mountable
  • Package: 1206 (3216 Metric)
  • Operating Temperature Range: -55°C to 125°C
  • Status: Active
  • Approvals: IEC and UL
