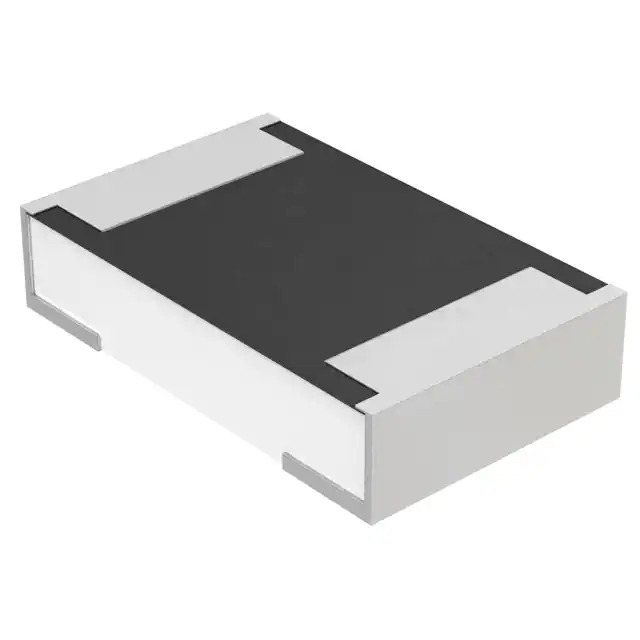

Same model may have multiple batches, images only for reference.
MFU0805FF00500P100 Vishay
Same model may have multiple batches, images only for reference.

MFU0805FF00500P100

Part No MFU0805FF00500P100
Manufacturer Vishay
Catalog Fuses
Description FUSE BOARD MNT 500MA 32VDC 0805 / 500 mA AC 32 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 0805 (2012 Metric)
Datasheet
MFU0805FF00500P100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Vishay Beyschlag/Draloric/BC Components
Series MFU
Package Tape & Reel
Product Status Active
Mounting Type Surface Mount
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 500 mA
Voltage Rating - DC 32 V
Response Time Fast Blow
Package / Case 0805 (2012 Metric)
Breaking Capacity @ Rated Voltage 50A
Melting I²t 0.0009
Approval Agency UL
Temperature Range - Operating -55°C ~ 125°C
Color -
Size / Dimension 0.079" L x 0.049" W x 0.018" H (2.00mm x 1.25mm x 0.45mm)
DC Cold Resistance 0.57 Ohms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1361410-MFU0805FF00500P100
Ultra Librarian 3D Model Ultra Librarian MFU0805FF00500P100 CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components MFU0805FF00500P100 is a surface mount fuse with a current rating of 500mA and a voltage rating of 32V.

  • Current Rating: 500mA
  • Voltage Rating: 32V
  • Fuse Type: Fast Blow
  • Breaking Capacity: 50A
  • Melting I²t: 0.0009
  • Operating Temperature: -55°C to 125°C
  • Packaging: Tape & Reel
  • Size: 0.079" L x 0.049" W x 0.018" H (2.00mm x 1.25mm x 0.45mm)
  • Product Status: Active
  • Series: MFU
  • Manufacturer: Vishay Beyschlag/Draloric/BC Components
  • ECCN: EAR99
  • Approvals: UL
