Same model may have multiple batches, images only for reference.

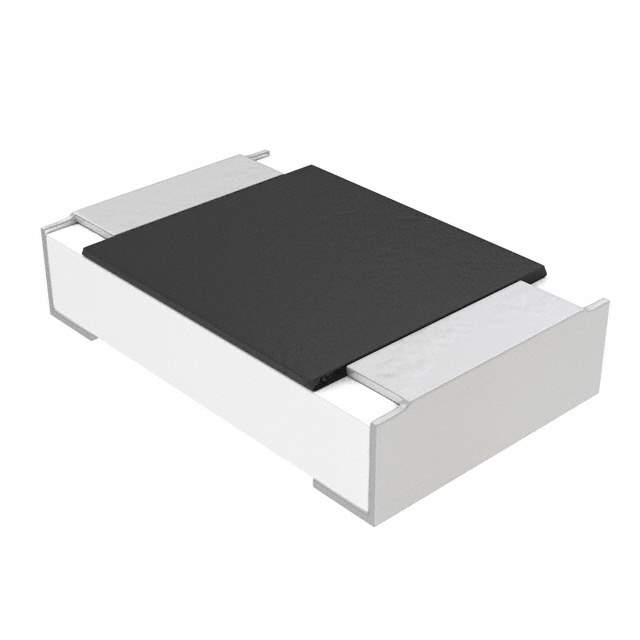

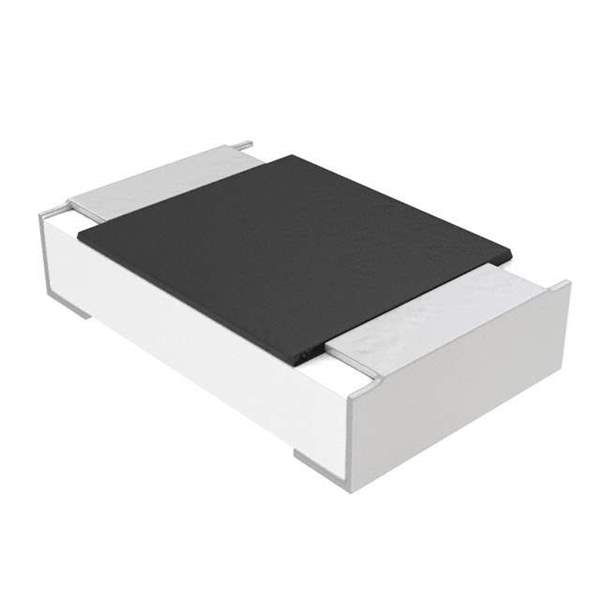

MCU08050C1009FP500 Real Image
Same model may have multiple batches, images only for reference.

MCU08050C1009FP500

Part No MCU08050C1009FP500
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 10 OHM 1% 1/5W 0805 / 10 Ohms ±1% 0.2W, 1/5W Chip Resistor 0805 (2012 Metric) Anti-Sulfur Thin Film
Datasheet
MCU08050C1009FP500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Beyschlag/Draloric/BC Components
Series MCU - Professional
Package Tape & Reel
Resistance 10 Ohms
Tolerance ±1%
Power (Watts) 0.2W, 1/5W
Composition Thin Film
Features Anti-Sulfur
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.022" (0.55mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Names MCU08050C1009FP500-ND,749-1723-6,749-1723-2,749-1723-1
Standard Package 5,000
Win Source Part Number 1130126-MCU08050C1009FP500
Ultra Librarian 3D Model Ultra Librarian MCU08050C1009FP500 CAD Model

Description

The MCU08050C1009FP500 is a chip resistor designed for use in surface mount applications.

  • Resistance: 10 Ohms
  • Power: 0.2W, 1/5W
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • AEC-Q200: Compliant
  • Package: 0805 (2012 Metric)
  • Operating Temperature Range: -55°C to 155°C
  • Feature: Anti-Sulfur
  • Application: Thin Film
