Same model may have multiple batches, images only for reference.

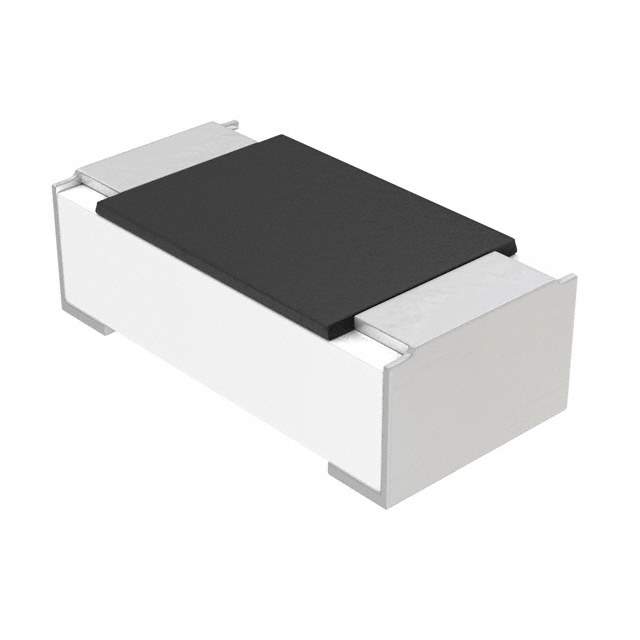

MCS04020C3601FE000 Real Image
Same model may have multiple batches, images only for reference.

MCS04020C3601FE000

Part No MCS04020C3601FE000
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 3.6K OHM 1% 1/16W 0402 / 3.6 kOhms ±1% 0.063W, 1/16W Chip Resistor 0402 (1005 Metric) Anti-Sulfur Thin Film
Datasheet
MCS04020C3601FE000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay Beyschlag/Draloric/BC Components
Series MCS - Professional
Package Tape & Reel
Resistance 3.6 kOhms
Tolerance ±1%
Power (Watts) 0.063W, 1/16W
Composition Thin Film
Features Anti-Sulfur
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) 0.015" (0.37mm)
Number of Terminations 2
Base Product Number MCS0402
Standard Package 10,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1340722-MCS04020C3601FE000
Ultra Librarian 3D Model Ultra Librarian MCS04020C3601FE000 CAD Model

Description

The MCS - Professional series resistor is a chip resistor with anti-sulfur features.

  • Manufacturer: Vishay Beyschlag/Draloric/BC Components
  • Size / Dimension: 0.039" L x 0.020" W (1.00mm x 0.50mm)
  • Power Rating: 0.063W, 1/16W
  • Resistance: 3.6 kOhms
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Composition: Thin Film
  • Number of Terminations: 2
  • ECCN: EAR99
