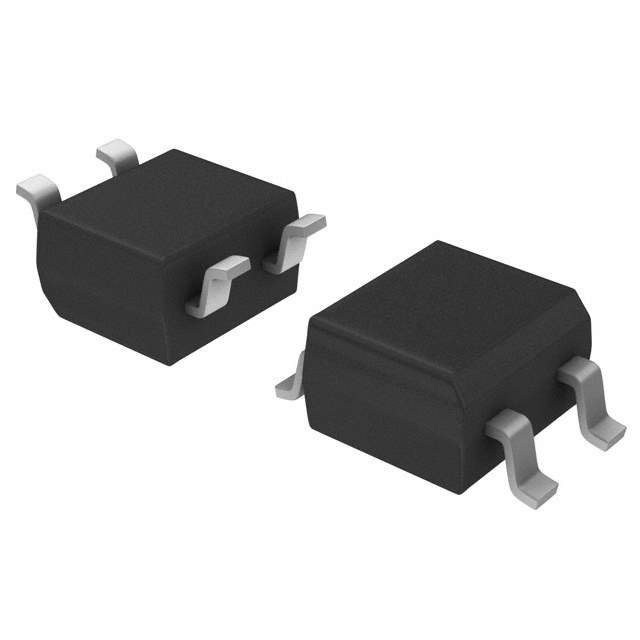

MB6S-E3/80 Real Image
Same model may have multiple batches, images only for reference.

MB6S-E3/80

Part No MB6S-E3/80
Manufacturer Vishay
Catalog Bridge Rectifiers
Description RECT BRIDGE 600V .5A TO269AA / Rectifier Bridge Diode Single 600V 0.8A 4-Pin TO-269AA T/R
Datasheet
MB6S-E3/80 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600V
Current - Average Rectified (Io) 500mA
Voltage - Forward (Vf) (Max) @ If 1V @ 400mA
Current - Reverse Leakage @ Vr 5μA @ 600V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package TO-269AA (MBS)
Win Source Part Number 010680-MB6S-E3/80
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Power Management, Consumer Electronics, Industrial, Communications & Networking
Family Name MB6S
Introduction Date July 10, 1998
ECCN EAR99
Country of Origin China
Halogen Free Not Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian MB6S-E3/80 CAD Model

Description

The Vishay MB6S is a single-phase standard diode bridge rectifier designed for use in power management, consumer electronics, industrial, communications, and networking applications.

  • Technology: Single-phase Standard Diode Bridge Rectifier
  • Applications: Power management, consumer electronics, industrial, communications, and networking
  • Maximum Forward Voltage: 1V @ 400mA
  • Maximum Peak Reverse Voltage: 600V
  • Average Rectified Current: 500mA
  • Reverse Leakage Current: 5μA @ 600V
  • Package: TO-269AA (MBS) case
  • Packaging: Reel
  • Popularity: High
  • Supply and Demand: Sufficient
  • Estimated EOL date: 2031
