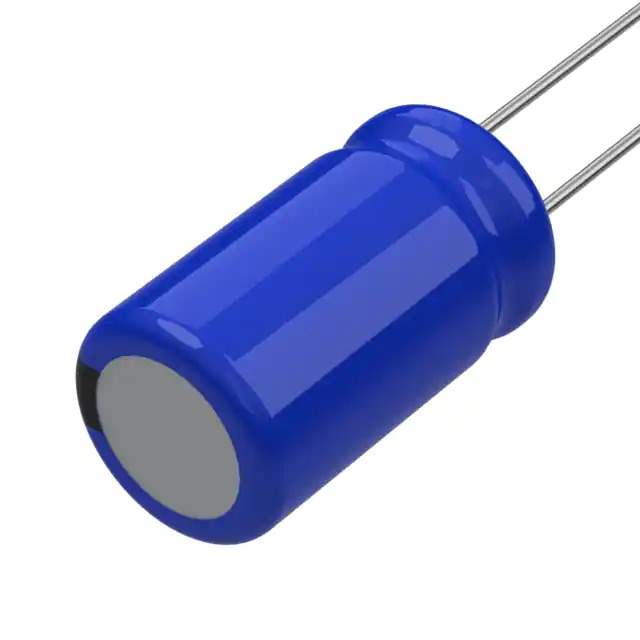

Same model may have multiple batches, images only for reference.

MAL215262229E3

Name: MAL215262229E3
Brand: Vishay
SKU: 880959
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MAL215262229E3
Manufacturer	Vishay
Catalog	Aluminum Capacitors
Description	CAP ALUM 22UF 20% 200V RADIAL / 22 μF 200 V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C
Datasheet	MAL215262229E3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Vishay
Series	152 RMH
Package	Bulk
Product Status	Active
Capacitance	22 µF
Tolerance	±20%
Voltage - Rated	200 V
Lifetime @ Temp.	3000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	120 mA @ 100 Hz
Impedance	3.2 Ohms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.689" (17.50mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Standard Package	500 pcs
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	880959-MAL215262229E3
Ultra Librarian 3D Model	Ultra Librarian MAL215262229E3 CAD Model

Description

The MAL215262229E3 is an aluminum electrolytic capacitor from the 152 RMH series.

Series: 152 RMH
Diameter: 0.394" (10.00mm)
Capacitance: 22µF
Voltage Rating: 200V
Tolerance: ±20%
Application: Automotive
Maximum Height: 0.689" (17.50mm)
Lead Spacing: 0.197" (5.00mm)
Impedance: 3.2 Ohms
Lifetime: 3000 hours @ 105°C
Polarization: Polarized
Mounting Type: Through Hole
Package: Radial, Can
Status: Active
Manufacturer: Vishay
AEC-Q200: Yes
