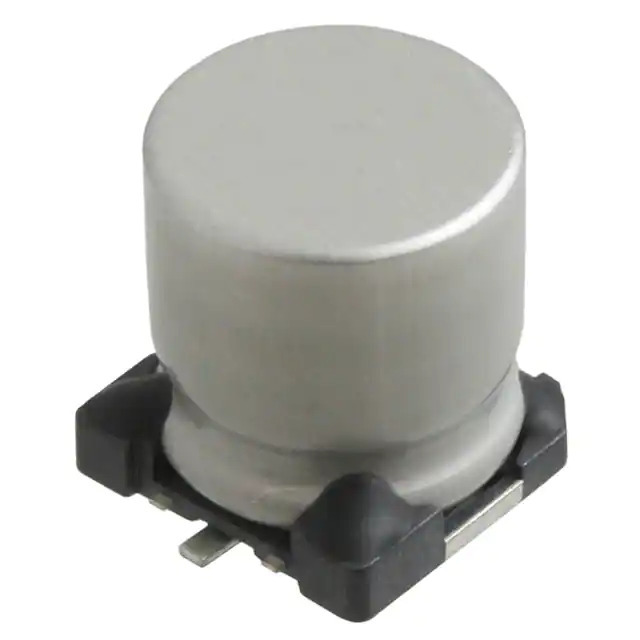

Same model may have multiple batches, images only for reference.

MAL215097802E3

Name: MAL215097802E3
Brand: Vishay
SKU: 1360320
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MAL215097802E3
Manufacturer	Vishay
Catalog	Aluminum Capacitors
Description	CAP ALUM 68UF 20% 63V SMD / 68 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C
Datasheet	MAL215097802E3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Vishay Beyschlag/Draloric/BC Components
Series	150 CRZ
Package	Tape & Reel
Product Status	Active
Capacitance	68 µF
Tolerance	±20%
Voltage - Rated	63 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	234 mA @ 100 Hz
Impedance	380 mOhms
Lead Spacing	-
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.512" (13.00mm)
Surface Mount Land Size	0.394" L x 0.394" W (10.00mm x 10.00mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1360320-MAL215097802E3
Ultra Librarian 3D Model	Ultra Librarian MAL215097802E3 CAD Model

Description

The MAL215097802E3 is an aluminum electrolytic capacitor designed for surface mount applications.

Series: 150 CRZ
Manufacturer: Vishay Beyschlag/Draloric/BC Components
Capacitance: 68µF
Voltage Rating: 63V
Tolerance: ±20%
Ripple Current (Low Frequency): 234mA @ 100 Hz
Package: Radial, can - SMD
Size: 0.394" Dia (10.00mm)
Height: 0.512" (13.00mm)
Lifetime: 3000 hours @ 105°C
Application: Automotive
AEC-Q200: Yes
HTSUS: 8532.22.0020
Polarization: Polarized
Impedance: 380 mOhms
