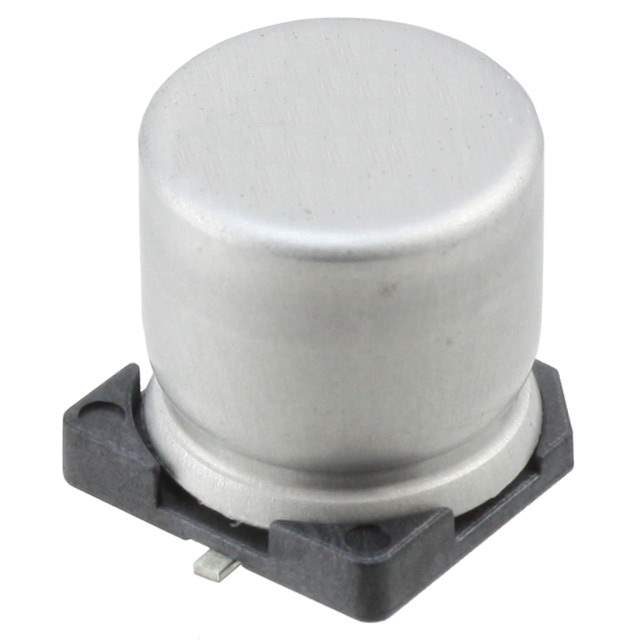

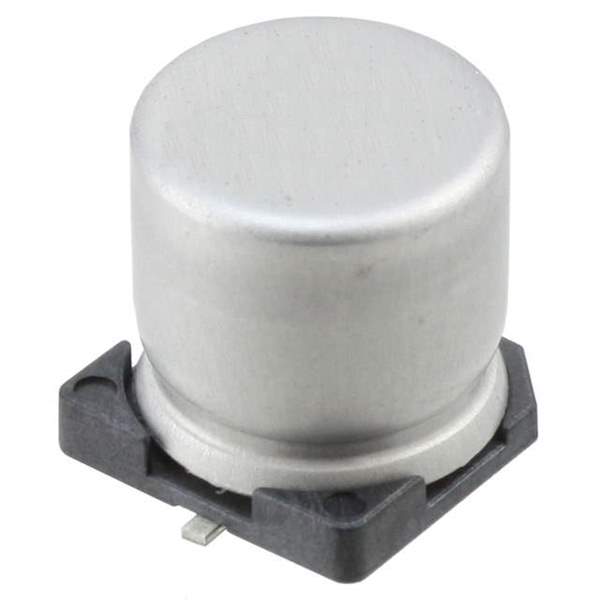

Same model may have multiple batches, images only for reference.

MAL214699805E3

Name: MAL214699805E3
Brand: Vishay
SKU: 1068333
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MAL214699805E3
Manufacturer	Vishay
Catalog	Aluminum Capacitors
Description	CAP ALUM 100UF 20% 63V SMD / 100 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 125°C
Datasheet	MAL214699805E3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Vishay Beyschlag/Draloric/BC Components
Series	146 CTI
Package	Tape & Reel
Capacitance	100 µF
Tolerance	±20%
Voltage - Rated	63 V
Lifetime @ Temp.	2000 Hrs @ 125°C
Temperature Range - Operating	-55°C ~ 125°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	330 mA @ 100 Hz
Ripple Current @ High Frequency	550 mA @ 100 kHz
Impedance	290 mOhms
Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.492" (12.50mm)
Surface Mount Land Size	0.394" L x 0.394" W (10.00mm x 10.00mm)
Mounting	SMD (SMT)
Package / Case	Radial, Can - SMD
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	4451PHDKR,4451PHTR,4451PHCT
Standard Package	250
Win Source Part Number	1068333-MAL214699805E3
Ultra Librarian 3D Model	Ultra Librarian MAL214699805E3 CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components electronic component (product) with Win Source Part Number 1068333-MAL214699805E3 is an aluminum electrolytic capacitor with a capacitance of 100 µF and voltage rating of 63 V.

Polarity: Polar
Package/Case: Radial, can - SMD
Category: Capacitors>Aluminum Electrolytic Capacitors
Popularity: Low
Supply and Demand Status: Shortage
