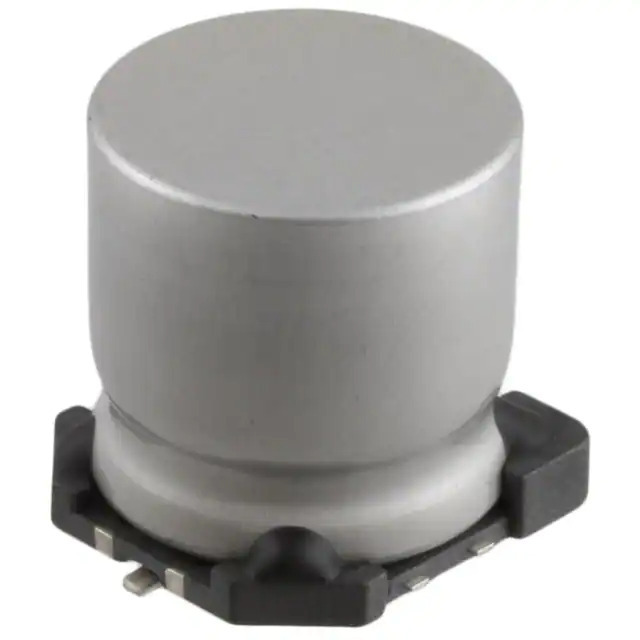

Same model may have multiple batches, images only for reference.

MAL214699108E3

Name: MAL214699108E3
Brand: Vishay
SKU: 1360385
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MAL214699108E3
Manufacturer	Vishay
Catalog	Aluminum Capacitors
Description	CAP ALUM 470UF 20% 50V SMD / 470 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 125°C
Datasheet	MAL214699108E3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Vishay Beyschlag/Draloric/BC Components
Series	146 CTI
Package	Tape & Reel
Product Status	Active
Capacitance	470 µF
Tolerance	±20%
Voltage - Rated	50 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 125°C
Temperature Range - Operating	-55°C ~ 125°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	780 mA @ 100 Hz
Ripple Current @ High Frequency	1.3 A @ 100 kHz
Impedance	72 mOhms
Lead Spacing	-
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	0.689" (17.50mm)
Surface Mount Land Size	0.630" L x 0.630" W (16.00mm x 16.00mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1360385-MAL214699108E3
Ultra Librarian 3D Model	Ultra Librarian MAL214699108E3 CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components MAL214699108E3 is an aluminum electrolytic capacitor with a capacitance of 470 μF.

Series: 146 CTI
Capacitance: 470 μF
Voltage: 50V
Tolerance: ±20%
Package: Radial, can - SMD
Application: Automotive
Size: 0.630" Dia (16.00mm)
Seated Height: 0.689" (17.50mm)
Surface Mount Land Size: 0.630" L x 0.630" W (16.00mm x 16.00mm)
REACH: Unaffected
