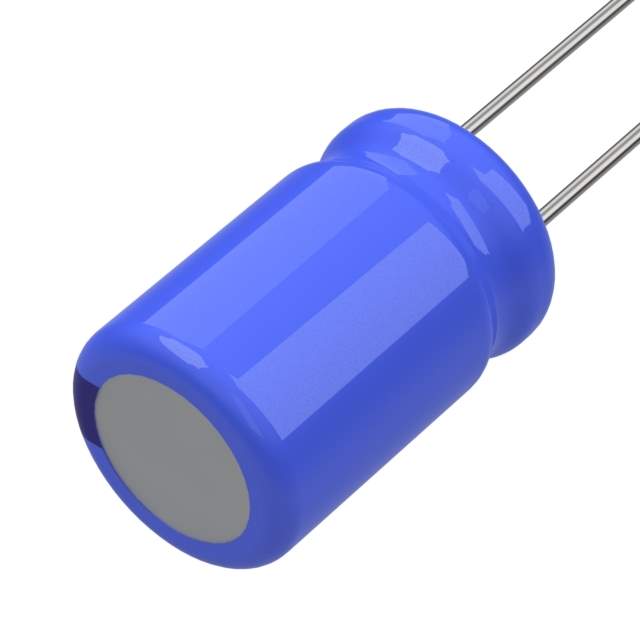

Same model may have multiple batches, images only for reference.

MAL213666561E3

Get a Quote

Part No	MAL213666561E3
Manufacturer	Vishay
Catalog	Aluminum Capacitors
Description	CAP ALUM 560UF 20% 25V RADIAL
Datasheet	MAL213666561E3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Vishay BC Components
Series	136 RVI
Packaging	Bulk
Capacitance	560μF
Tolerance	±20%
Voltage Rating	25V
Lifetime @ Temp.	7000 Hrs @ 105°C
Operating Temperature Range	-55°C ~ 105°C
Polarization	Polar
Applications	General
Ripple Current - Low Frequency	819mA @ 100Hz
Impedance	52 mOhm
Lead Spacing	0.197" (5.00mm)
Dimension	0.394" Dia (10.00mm)
Height - Seated (Maximum)	1.063" (27.00mm)
Mounting Style	Through Hole
Package	Radial, Can
Win Source Part Number	763405-MAL213666561E3
Popularity	Medium
Supply and Demand Status	Limited
Family Name	136 RVI
Introduction Date	December 21, 2007
ECCN	EAR99
Estimated EOL Date	2026
Ultra Librarian 3D Model	Ultra Librarian MAL213666561E3 CAD Model

Description

The Vishay BC Components MAL213666561E3 capacitor is manufactured by Vishay BC Components.

Series: 136 RVI
Capacitance: 560μF
Voltage Rating: 25V
Operating Temperature: -55°C to 105°C
Lifetime: 7000 hours @ 105°C
Polarized: Yes
Tolerance: ±20%
Ripple Current: 819mA @ 100Hz
Impedance: 52 mOhm
Applications: General
Packaging: Bulk
