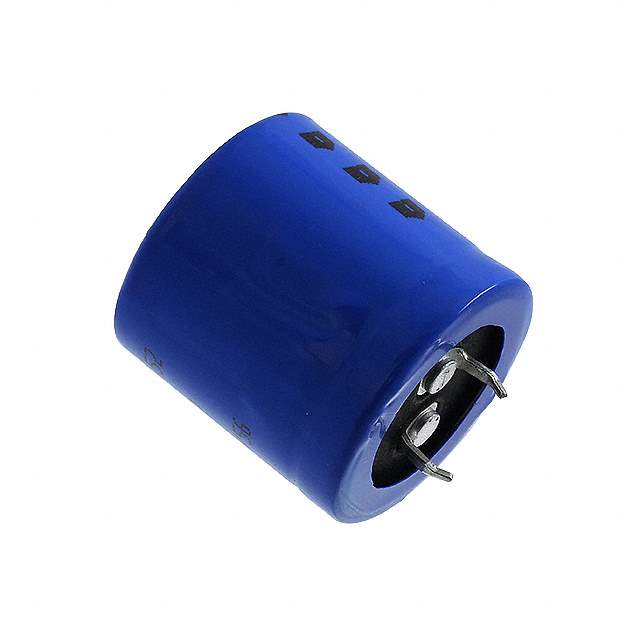

Same model may have multiple batches, images only for reference.

MAL205649222E3

Name: MAL205649222E3
Brand: Vishay
SKU: 629068
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	MAL205649222E3
Manufacturer	Vishay
Catalog	Aluminum Capacitors
Description	Aluminum Capacitors Power Standard Miniature Snap-In \| CAP ALUM 2200UF 20% 100V SNAP
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Vishay BC Components
Packaging	Tape & Box (TB)
Capacitance	2200μF
Tolerance	±20%
Voltage - Rated	100V
ESR (Equivalent Series Resistance)	125mOhm at 100Hz
Lifetime at Temp.	12000 Hrs at 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	Audio
Ripple Current at Low Frequency	2.3A at 100Hz
Impedance	110 mOhms
Lead Spacing	0.394" (10.00mm)
Parts Dimension	0.984" Dia (25.00mm)
Height - Seated (Maximum)	2.047" (52.00mm)
Mounting Style	Through Hole
Manufacturer Package	Radial, Can - Snap-In
Manufacturer Pack Quantity	100
MSL Level	Not Applicable
Win Source Part Number	1211756-MAL205649222E3
Manufacturer Homepage	www.vishay.com
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian MAL205649222E3 CAD Model

Description

This is a high-quality audio capacitor manufactured by Vishay BC Components, with a capacitance of 2200μF and a voltage rating of 100V.

Capacitance: 2200μF
Voltage Rating: 100V
Tolerance: ±20%
Lead Spacing: 0.394" (10.00mm)
Impedance: 110 mOhms
ESR: 125mOhm @ 100Hz
Polarized: Yes
Surface Mount Land Size: -
Suitable for: Audio applications
Package: Radial, can - snap-in
Height: 2.047" (52.00mm)
Lifetime @ Temperature: 12000 Hrs @ 85°C
Ripple Current: 2.3A @ low frequency
Supply and Demand: Limited
Manufacturer Pack Quantity: 100
MSL Level: Not applicable
Parts Dimension: 0.984" Dia (25.00mm)
