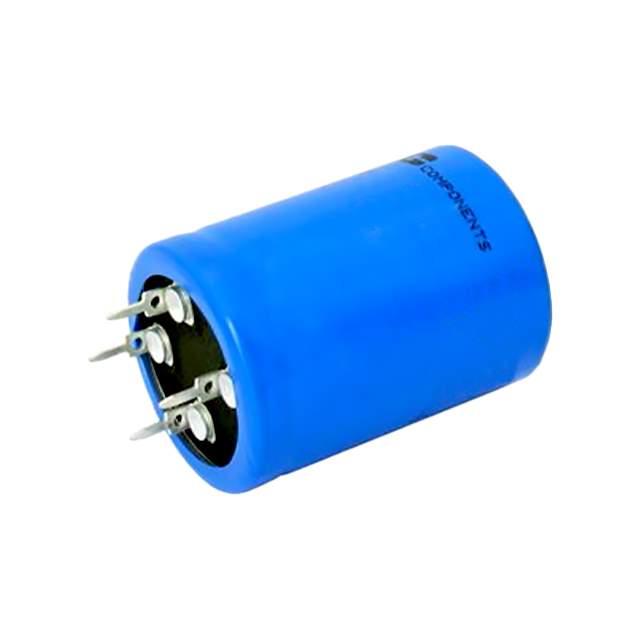

Same model may have multiple batches, images only for reference.

MAL205256101E3

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MAL205256101E3
Manufacturer	Vishay
Catalog	Aluminum Capacitors
Description	CAP ALUM 100UF 400V RADIAL / 100 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - 4 Lead 1.275Ohm @ 100Hz 15000 Hrs @ 85°C
Datasheet	MAL205256101E3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Vishay Beyschlag/Draloric/BC Components
Series	052 PED-PW
Package	Bulk
Capacitance	100 µF
Tolerance	-10%, +30%
Voltage - Rated	400 V
ESR (Equivalent Series Resistance)	1.275Ohm @ 100Hz
Lifetime @ Temp.	15000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	840 mA @ 100 Hz
Impedance	1 Ohms
Lead Spacing	0.787" (20.00mm)
Dimension	1.181" Dia (30.00mm)
Height - Seated (Max)	1.772" (45.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can - 4 Lead
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Other Names	MAL205256101E3-ND,4782PHBK
Standard Package	100
Win Source Part Number	974866-MAL205256101E3
Ultra Librarian 3D Model	Ultra Librarian MAL205256101E3 CAD Model

Description

The MAL205256101E3 is an aluminum electrolytic capacitor from Vishay Beyschlag/Draloric/BC Components.

Capacitance: 100μF
Voltage Rating: 400V
Tolerance: -10% to +30%
Impedance: 1 ohm
Operating Temperature Range: -40°C to 85°C
Lifetime: 15000 hours @ 85°C
Mounting: Through-Hole
Package: Radial Can with 4 Leads
