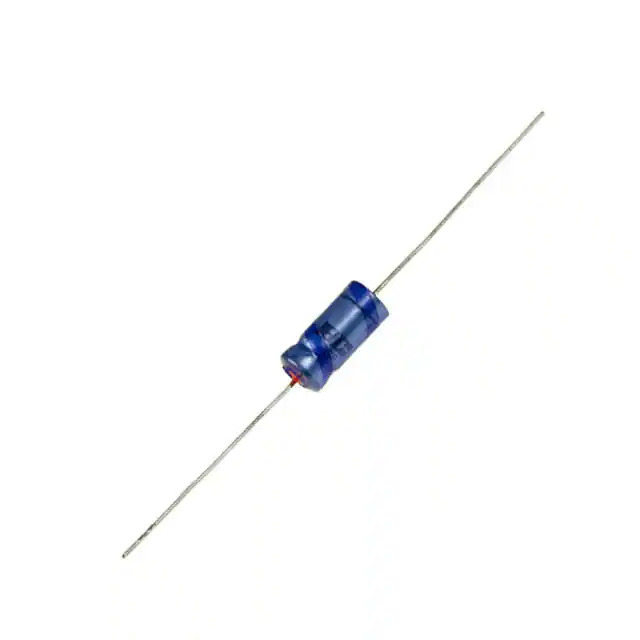

MAL203036109E3 Vishay
Same model may have multiple batches, images only for reference.

MAL203036109E3

Part No MAL203036109E3
Manufacturer Vishay
Catalog Aluminum Capacitors
Description CAP ALUM 10UF 25V AXIAL / 10 µF 25 V Aluminum Electrolytic Capacitors Axial, Can 1Ohm @ 100Hz 3000 Hrs @ 85°C
Datasheet
MAL203036109E3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series 030 AS
Product Status Active
Capacitance 10 µF
Tolerance -10%, +50%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) 1Ohm @ 100Hz
Lifetime @ Temp. 3000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 50 mA @ 100 Hz
Impedance 9 Ohms
Lead Spacing -
Size / Dimension 0.177" Dia x 0.394" L (4.50mm x 10.00mm)
Height - Seated (Max) -
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Axial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357965-MAL203036109E3
Ultra Librarian 3D Model Ultra Librarian MAL203036109E3 CAD Model

Description

The 030 AS aluminum electrolytic capacitor is a reliable component for general-purpose applications from Vishay Beyschlag/Draloric/BC Components.

  • Capacitance: 10 µF
  • Tolerance: -10%, +50%
  • Voltage Rating: 25V
  • Equivalent Series Resistance (ESR): 1Ohm @ 100Hz
  • Lifetime: 3000 hours @ 85°C
  • Mounting Type: Through-Hole
  • Package/Case: Axial, Can
  • Ripple Current (Low Frequency): 50 mA @ 100 Hz
  • Product Status: Active
  • Packaging: Bulk
