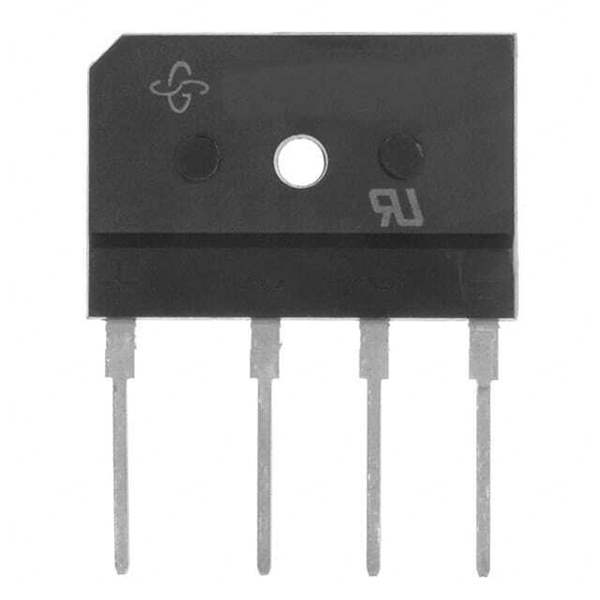

LVB2560-M3/45
Same model may have multiple batches, images only for reference.

LVB2560-M3/45

Part No LVB2560-M3/45
Manufacturer Vishay
Catalog Bridge Rectifiers
Description BRIDGE RECT 1P 600V 25A GSIB-5S
Datasheet
LVB2560-M3/45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 46 Weeks
Features Bridge Rectifier Single Phase Standard 600 V Through Hole GSIB-5S
Manufacturer Vishay
Package Tube
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Through Hole
Package 4-SIP, GSIB-5S
Case / Package GSIB-5S
Family Name LVB2560
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number LVB2560-M3/45-ND, LVB2560-M3/45GI
Quantity per package 20
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 880328-LVB2560-M3/45
Ultra Librarian 3D Model Ultra Librarian LVB2560-M3/45 CAD Model

Description

The Vishay LVB2560 is a high-quality, bridge rectifier that is perfect for use in a variety of applications from Vishay.

  • Maximum Current Rating: 25A
  • Maximum Voltage Rating: 600V
  • Mounting: Through-Hole
  • Operating Temperature: -55°C to 150°C (TJ)
  • Package: 4-SIP, GSIB-5S
  • Family: LVB2560
  • ECCN: EAR99
