Same model may have multiple batches, images only for reference.

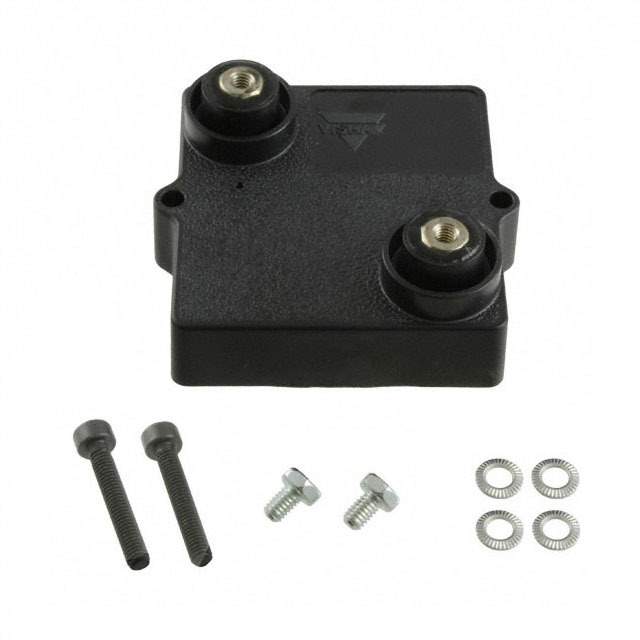

LPSA300H1001JB Real Image
Same model may have multiple batches, images only for reference.

LPSA300H1001JB

Part No LPSA300H1001JB
Manufacturer Vishay
Catalog Chassis Mount Resistors
Description LPSA 300 H 1K 5% BO15 / 1 kOhms ±5% 300W Thick Film Chassis Mount Resistor
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chassis Mount Resistors
Mfr Vishay Sfernice
Series LPSA 300
Package Box
Resistance 1 kOhms
Tolerance ±5%
Power (Watts) 300W
Composition Thick Film
Temperature Coefficient ±150ppm/°C
Temperature Range - Operating -55°C ~ 120°C
Features Automotive AEC-Q200, Non-Inductive
Mounting Feature Screw Holes
Dimension 2.362" L x 2.244" W (60.00mm x 57.00mm)
Height - Seated (Max) 1.055" (26.80mm)
Lead Style M4 Threaded
Package / Case Box
ECCN EAR99
HTSUS 8533.29.0000
Other Names 716-LPSA300H1001JB
Standard Package 15
Win Source Part Number 1152486-LPSA300H1001JB
Ultra Librarian 3D Model Ultra Librarian LPSA300H1001JB CAD Model

Description

The LPSA300H1001JB from Vishay Sfernice is a chassis-mount resistor that has a high power rating of 300 W and a resistance of 1 kOhms.

  • Mounting Type: Chassis Mount
  • Power Rating: 300 W
  • Resistance: 1 kOhms
  • Tolerance: ±5%
  • Temperature Coefficient: ±150ppm/°C
  • RoHS Compliant: Yes
  • Popularity: Low
  • Mounting Feature: Screw Hole
  • Operating Temperature: -55°C to 120°C
