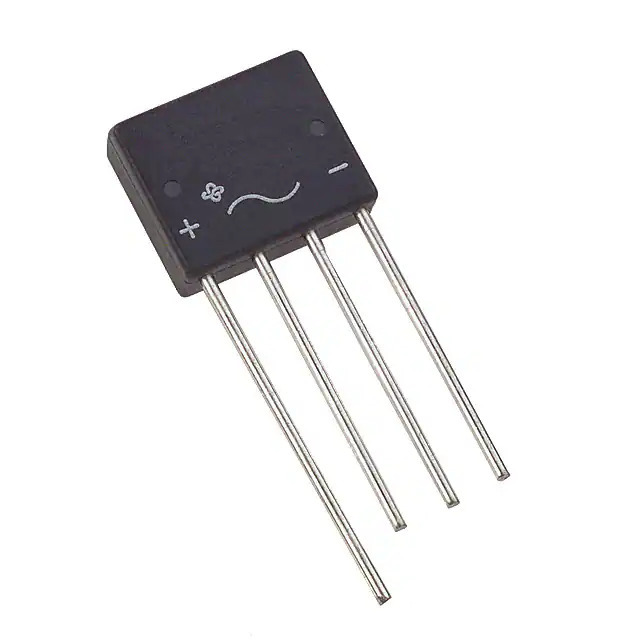

KBL10-E4/51 Vishay
Same model may have multiple batches, images only for reference.

KBL10-E4/51

Part No KBL10-E4/51
Manufacturer Vishay
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 1KV 4A KBL
Datasheet
KBL10-E4/51 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Vishay General Semiconductor - Diodes Division
Series -
Package Bulk
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1 kV
Current - Average Rectified (Io) 4 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 4 A
Current - Reverse Leakage @ Vr 5 µA @ 1000 V
Temperature Range - Operating -50°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-SIP, KBL
Supplier Device Package KBL
Base Product Number KBL10
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1368101-KBL10-E4/51
Ultra Librarian 3D Model Ultra Librarian KBL10-E4/51 CAD Model

Description

The 1368101-KBL10-E4/51 is a bridge rectifier diode from Vishay General Semiconductor - Diodes Division.

  • Package / Case: 4-SIP
  • Base Product Number: KBL10
  • Temperature Range: -50°C to 150°C
  • Average Rectified Current: 4 A
  • Voltage Forward Drop: 1.1 V @ 4 A
  • Current Reverse Leakage @ Vr: 5 µA @ 1000 V
  • Diode Type: Single-Phase
  • Voltage Peak Reverse: 1 kV
  • RoHS: Yes
  • REACH Status: Unaffected
  • Product Status: Active
  • Mounting Type: Through Hole
