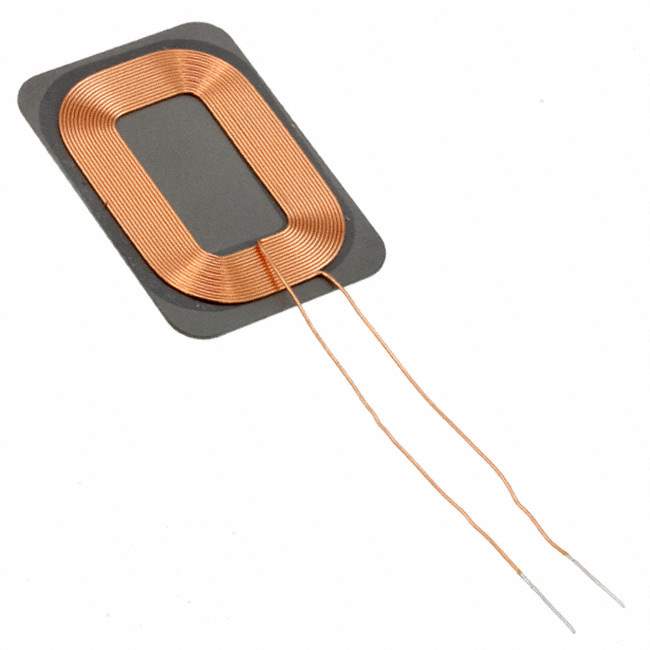

IWAS3827ECEB100J50 Real Image
Same model may have multiple batches, images only for reference.

IWAS3827ECEB100J50

Part No IWAS3827ECEB100J50
Manufacturer Vishay
Catalog Wireless Charging Coils
Description RX 1 COIL 1 LAYER 10.7UH / Wireless Charging Receiving Coil
Datasheet
IWAS3827ECEB100J50 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Vishay Dale
Function Receiver
Type 1 Coil, 1 Layer
Inductance 10.7μH
Tolerance ±5%
DC Resistance (DCR) 183 mOhm
Q @ Freq 30 @ 200kHz
Dimension 1.50" L x 1.05" W x 0.04" H (38.1mm x 26.7mm x 1.0mm)
Win Source Part Number 777596-IWAS3827ECEB100J50
Popularity Medium
Supply and Demand Status Limited
Quantity per package 100
Family Name IWAS-3827EC-50
Introduction Date July 11, 2012
Country of Origin Mexico
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian IWAS3827ECEB100J50 CAD Model

Description

The Vishay Dale IWAS-3827EC-50 is a 1 coil, 1 layer inductor.

  • Inductance: 10.7μH
  • Tolerance: ±5%
  • Applications: Receiver
  • Dimensions: 1.50" L x 1.05" W x 0.04" H (38.1mm x 26.7mm x 1.0mm)
  • DC Resistance: 183 mOhm
  • Q @ Freq: 30 @ 200kHz
  • Category: Inductors, Coils, Chokes
  • Manufacturer: Vishay Dale
  • Introduction Date: July 11, 2012
  • Made in: Mexico
  • Status: Obsolete/End of Life
