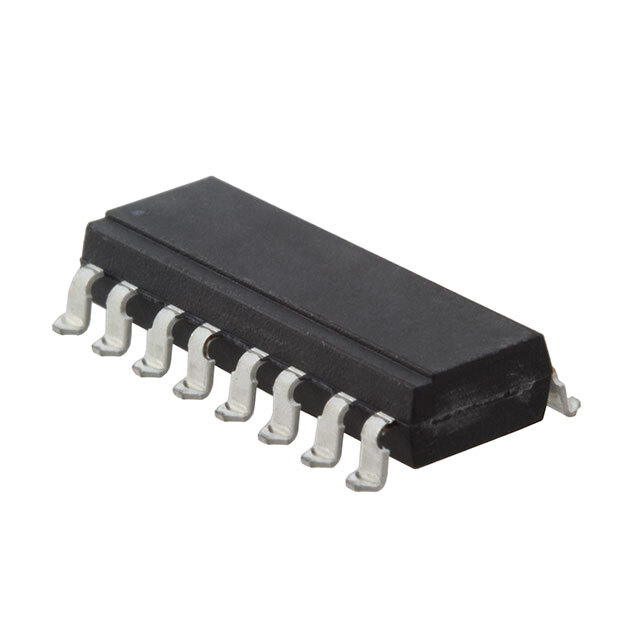

Same model may have multiple batches, images only for reference.
ILQ620GB-X009 Vishay – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

ILQ620GB-X009

Part No ILQ620GB-X009
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5.3KV 4CH TRANS 16-SMD
Datasheet
ILQ620GB-X009 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Product Status Obsolete
Number of Channels 4
Voltage - Isolation 5300Vrms
Current Transfer Ratio (Min) 100% @ 5mA
Current Transfer Ratio (Max) 600% @ 5mA
Turn On / Turn Off Time (Typ) 3µs, 2.3µs
Rise / Fall Time (Typ) 20µs, 2µs
Input Type AC, DC
Output Type Transistor
Voltage - Output (Max) 70V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.15V
Current - DC Forward (If) (Max) 60 mA
Vce Saturation (Max) 400mV
Temperature Range - Operating -55°C ~ 100°C
Mounting Type Surface Mount
Case / Package 16-SMD, Gull Wing
Supplier Device Package 16-SMD
Package Tube
Supply and Demand Status Shortage
Win Source Part Number 1503358-ILQ620GB-X009
Ultra Librarian 3D Model Ultra Librarian ILQ620GB-X009 CAD Model
